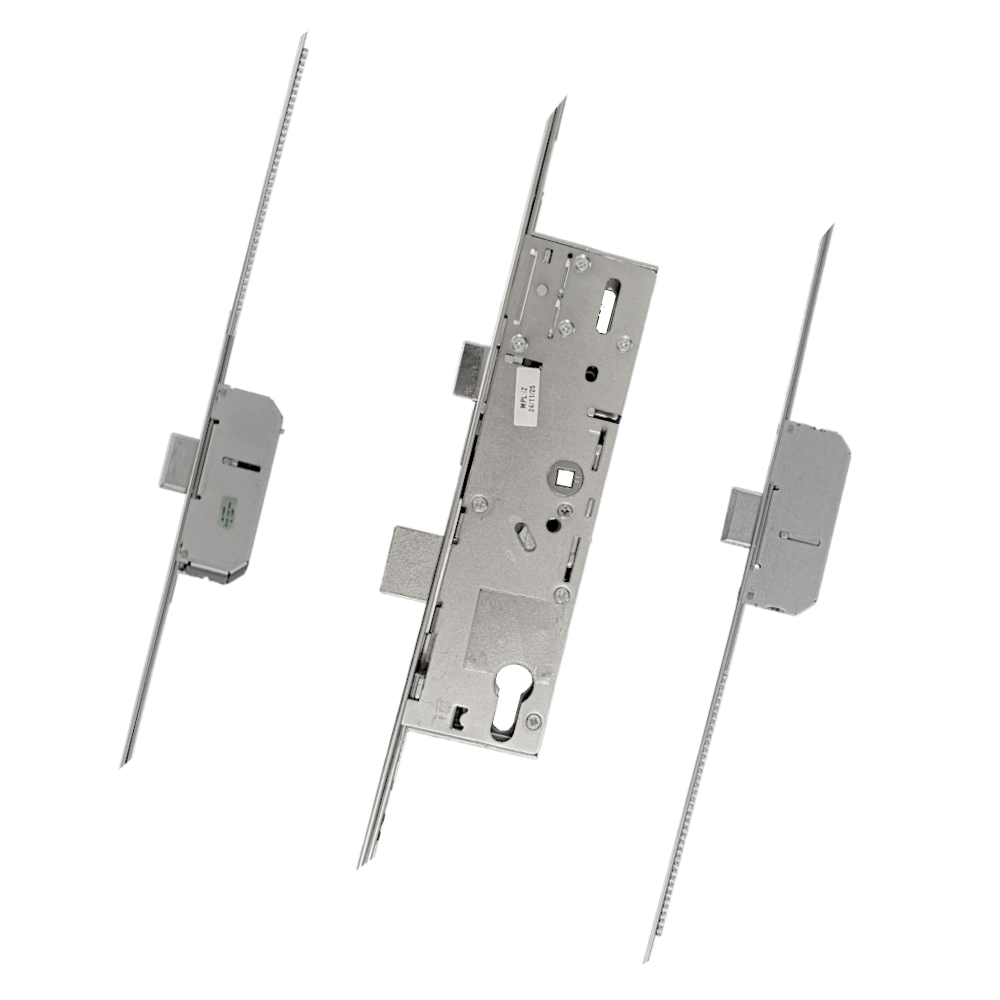

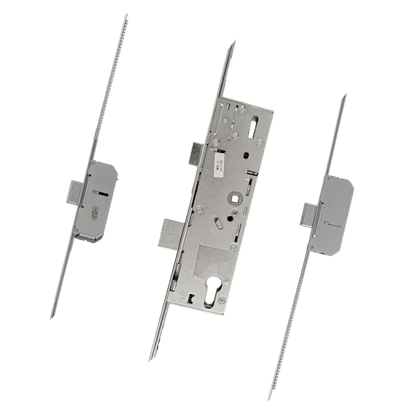

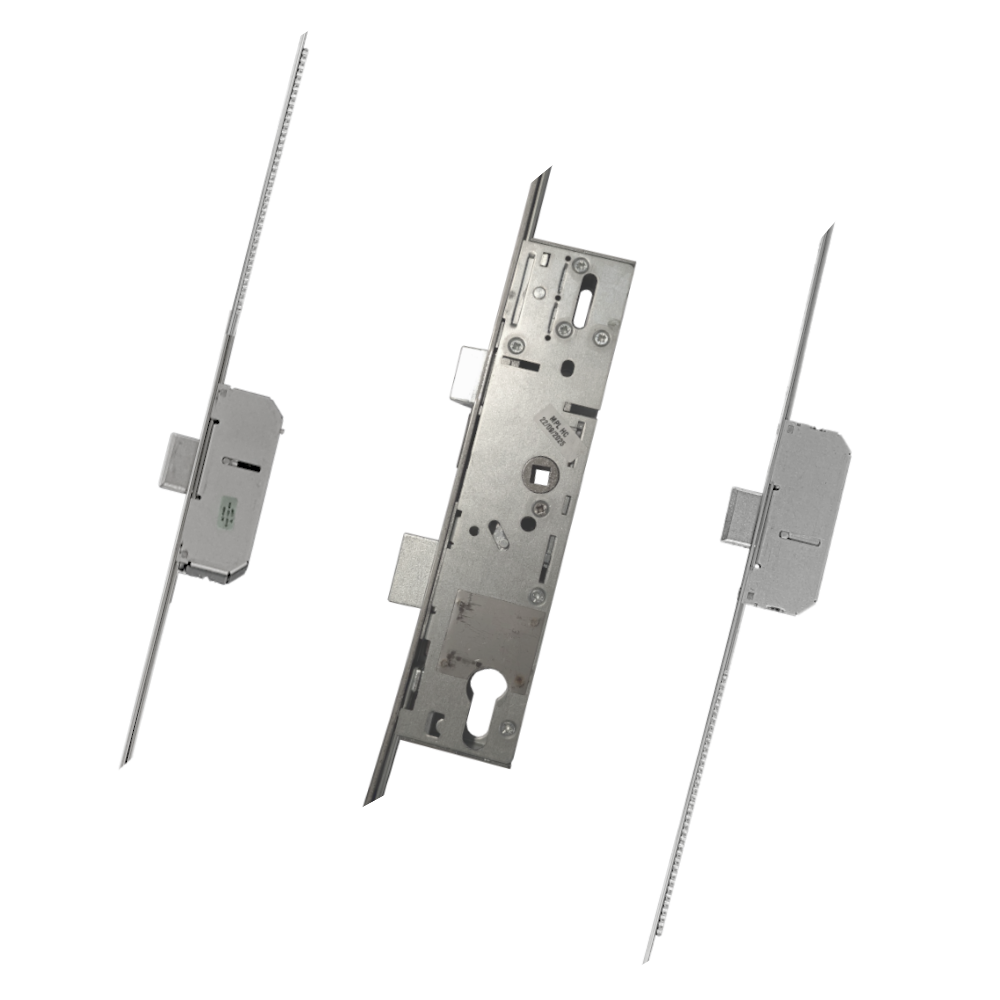

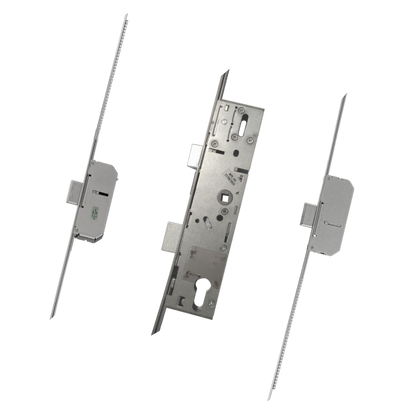

2 Linear Bolt Split Spindle Latch & Deadbolt With 16mm Faceplate

The ERA 2 Linear Deadbolt Split Spindle Latch and Deadbolt Multipoint Lock is designed for enhanced security and versatility, making it an ideal choice for both timber and composite doors.

With options for a 35mm or 45mm backset and a 16mm wide faceplate, this lock is tailored for UPVC applications, ensuring a seamless fit. The full-length strip features two linear deadbolt locking points, each with an 18mm throw, providing robust protection against unauthorized access.

Key Features:

• Accreditation: Complies with PAS24 standards for security.
• Gearbox: The split spindle design allows for easy operation, with a case height of 220mm and a choice of 53mm or 63mm case width based on backset preference.
• Locking Points: Includes additional locking points along the full length strip, enhancing overall security.
• Croppable Design: The unit can be cropped to fit specific door heights, offering flexibility during installation.
• Handing: The latch is non-handed and can be easily reversed, accommodating various door configurations.
• Operation: Engage the locking mechanisms by lifting the lever, followed by a full turn of the cylinder to secure. Unlocking is just as simple—turn the key and push down on the lever.
• Optional Shootbolts: For added security, optional shootbolts can be fitted.

This multipoint lock not only meets high security standards but also offers user-friendly features, making it a reliable choice for any door installation.
