2 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock - Option 1 - 16mm Faceplate

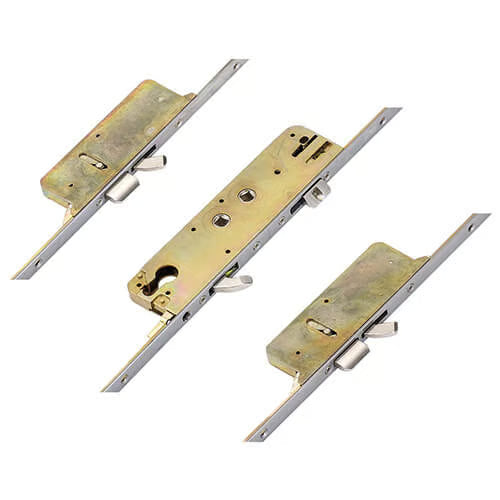

Product Overview: Millenco Mantis 2 Multipoint Door Lock

The Millenco Mantis 2 multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 3 hooks, 2 deadbolts, and 1 latch. This second-generation lock is engineered with precision, offering unique measurements of 65mm and 95mm centres, making it ideal for master doors in French door setups.

Key Features:

• Variations Available: The Mantis 2 comes in three distinct variants:
  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • Passive lock version
• Faceplate Options: Historically available with a 20mm faceplate, the Mantis 2 is now exclusively offered with a 16mm faceplate.
• Identification: Easily identifiable by its double spindle and unique centre measurements, the Mantis 2 is the only lock of its kind on the market. Early versions may lack branding on the faceplate, so checking these specifications is crucial.
• Gearbox Configuration: The Mantis 2 gearbox is available in a single configuration with a backset of 35mm, designed for double spindle lift lever or nightlatch operation.
• Dimensions: The gearbox measures 205mm in height and 55mm in width, featuring a central hook bolt that is 45mm high and a latch measuring 23mm high with an 11mm projection.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage all locking points.
3. Secure the system by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Conclusion:

The Millenco Mantis 2 multipoint door lock combines security, ease of use, and innovative design, making it a reliable choice for homeowners seeking to enhance their door security. With its unique features and straightforward operation, it stands out as a top-tier locking solution.
