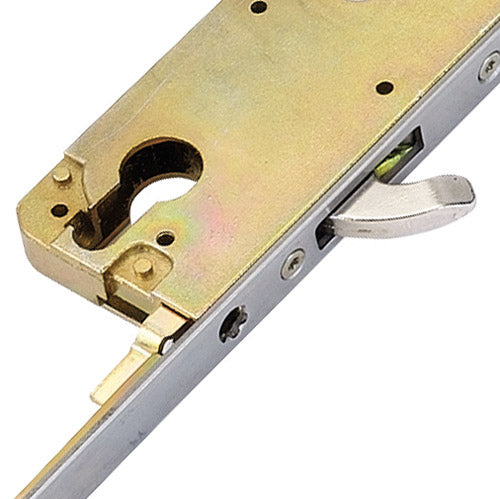

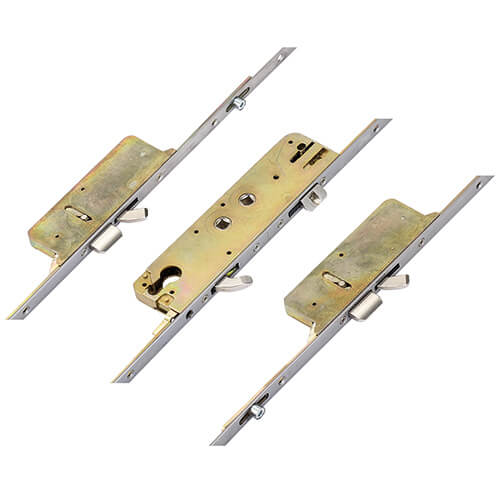

2 Latch 3 Hooks 2 Deadbolts 2 Rollers Double Spindle Multipoint Door Lock

Product Overview: Millenco Mantis 2 Multipoint Door Lock

The Millenco Mantis 2 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes:

• 2 Rollers
• 3 Hooks
• 2 Deadbolts
• 1 Latch

Specifications:

• Centres: 65mm and 95mm
• Hook Centres: 1300mm
• Faceplate Width: 16mm (previously available in 20mm)

As part of the Yale group of companies, the Mantis 2 represents the second generation of Millenco locks, ensuring reliability and advanced locking mechanisms.

Variants Available:

1. 3 Hooks and 2 Deadbolts
2. 3 Hooks and 2 Deadbolts with 2 Rollers
3. Passive Lock Version

Identification:

Identifying a Millenco Mantis 2 lock is straightforward due to its unique double spindle design and specific centre measurements. This lock is the only one on the market with 95mm and 65mm centres, making it easy to confirm authenticity, especially since earlier versions lacked branding on the faceplate.

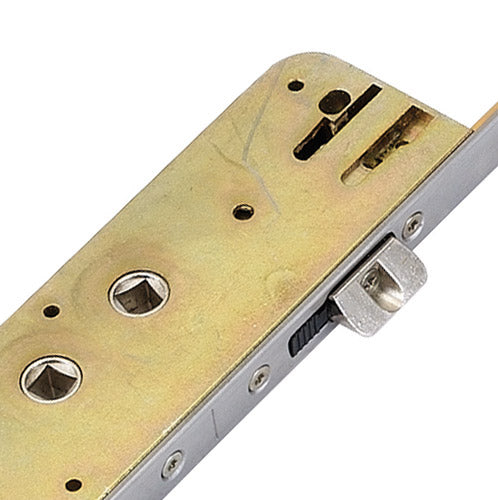

Gearbox Configuration:

• Configuration: Double spindle for lift lever or nightlatch operation
• Backset: 35mm
• Dimensions: 205mm high x 55mm wide
• Central Hook Bolt Height: 45mm
• Latch Dimensions: 23mm high, projects 11mm

Note that while the faceplate can be unscrewed, the gearbox cannot be replaced independently due to its connection with the linkage rail behind the faceplate.

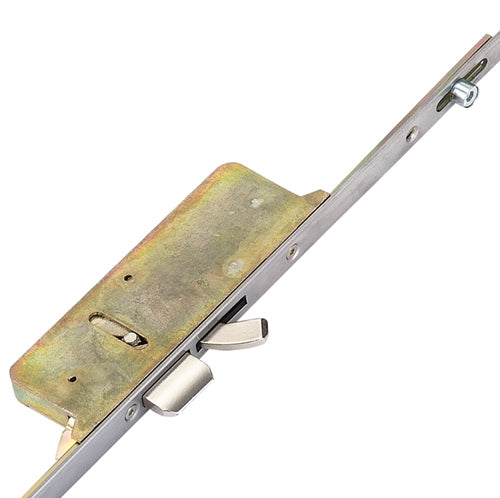

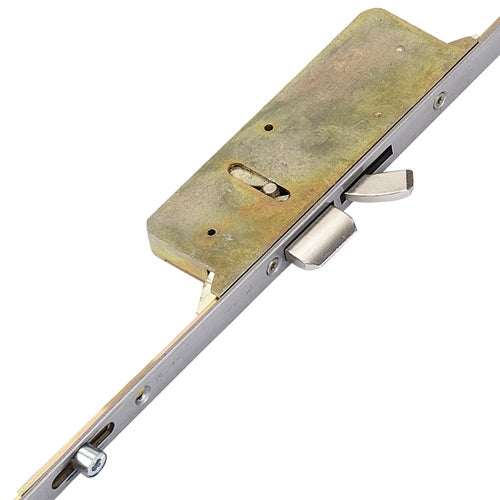

Hook and Roller Functionality:

Millenco hooks consist of an upward-moving hook and a deadbolt positioned below. The hook cases measure 140mm by 48mm, with deadbolts throwing 20mm into their keeps. Rollers serve to compress and pull the door against the frame, aiding in weather sealing and preventing warping, provided they are properly engaged.

Adjustment:

Rollers can typically be adjusted by 1mm for optimal weather sealing.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: Millenco
• Spindle Size: 8mm
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1300mm
• Distance Between Outer Locking: 1615mm
• Height: 2200mm
• Top Hook to Spindle: 630mm
• Bottom Hook to Spindle: 670mm
• Top Roller to Spindle: 785mm
• Bottom Roller to Spindle: 830mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Millenco Mantis 2 multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres Measurement:
  • Measure the distance between the centers of the keyhole and the handle hole.
  • Ensure you have both 95mm and 65mm measurements for compatibility.
• Faceplate Measurement:
  • Measure the width and length of the existing faceplate.
  • This will help you select the correct faceplate from the drop-down options.
• Operation:
  • Choose the operation type based on your door's requirements (e.g., lift lever or nightlatch).
  • Ensure compatibility with your existing door setup.

By following these measuring guidelines, you can ensure that your Millenco Mantis 2 lock fits perfectly and operates smoothly, enhancing the security of your property.
