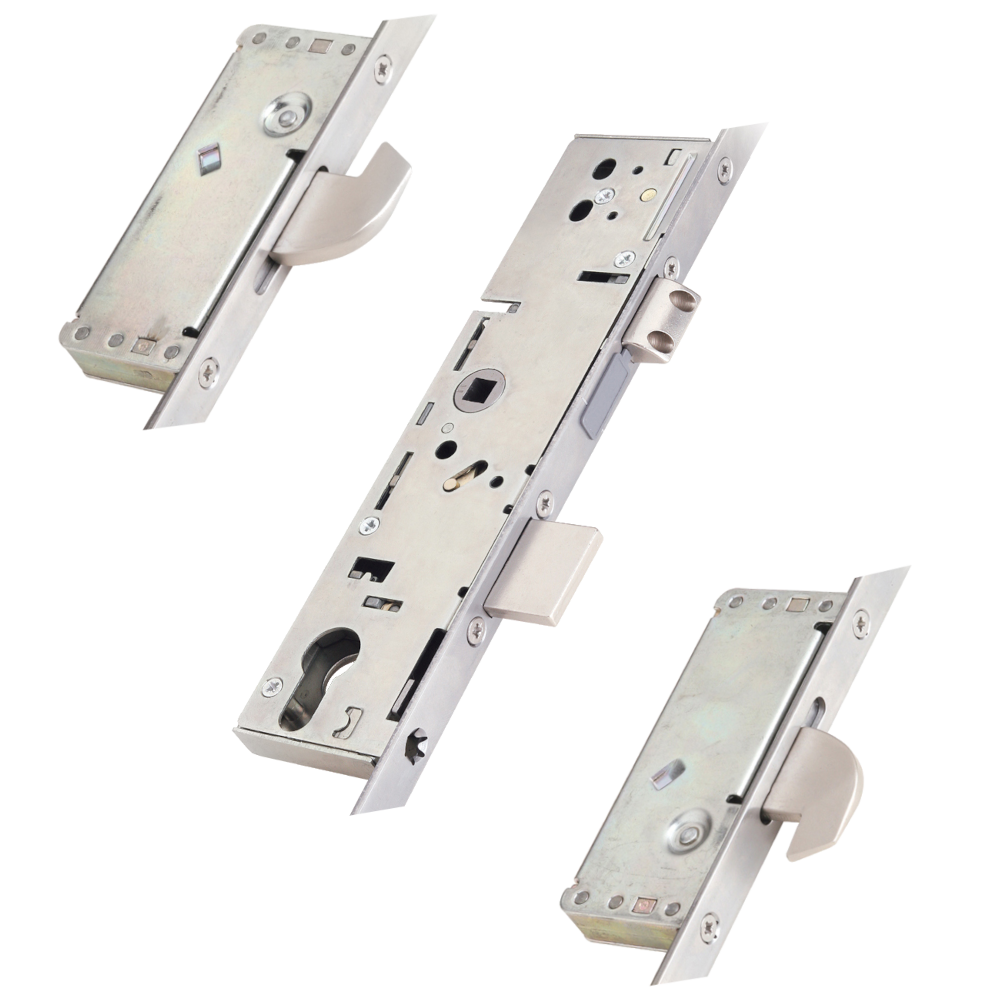

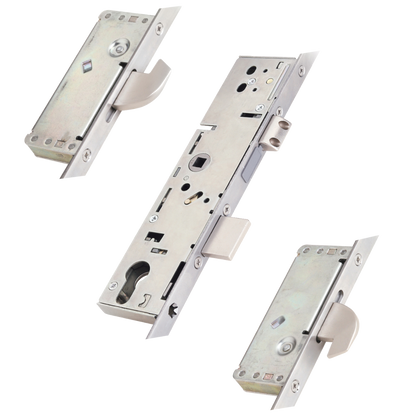

2 Large Hook Split Spindle Latch & Deadbolt With 20mm Radius Faceplate

The ERA 2 Large Hook Split Spindle Latch and Deadbolt Multipoint Lock is designed for robust security and versatility, making it an excellent choice for both residential and commercial applications.

Key Features

• Versatile Backset Options: Available in 35mm or 45mm backset, ensuring compatibility with various door types.
• Durable Construction: The lock features a sturdy 20mm radius faceplate, perfect for composite and timber doors, with an overall length of 1635mm.
• Enhanced Security: Incorporates 2 large hook locking points along with a central deadbolt, providing multiple layers of security.
• User-Friendly Operation: The split spindle operation allows for easy engagement of the locking mechanisms. Simply lift the lever and turn the cylinder for secure locking.
• Reversible Latch: The latch can be easily reversed to accommodate different door handing, enhancing installation flexibility.
• Spring-Loaded Gearbox: The sprung gearbox includes an internal spring mechanism, ensuring smooth lever return without the need for additional components.

Specifications

• Accreditation: Complies with BS 6375 for quality assurance.

• Locking Point Distances:

  • Distance A = 728mm
  • Distance B = 667mm

• Gearbox Dimensions:

  • Case Height: 220mm
  • Case Width: 53mm or 63mm (depending on backset)

Important Notes

• Croppable: This unit cannot be cropped on site; please verify the required length before purchasing.

• Operation Instructions: To lock, lift the lever and turn the cylinder one full turn. To unlock, turn the key one full turn and push down on the lever.

This multipoint lock not only meets high security standards but also offers ease of use and installation flexibility, making it a reliable choice for securing your property.
