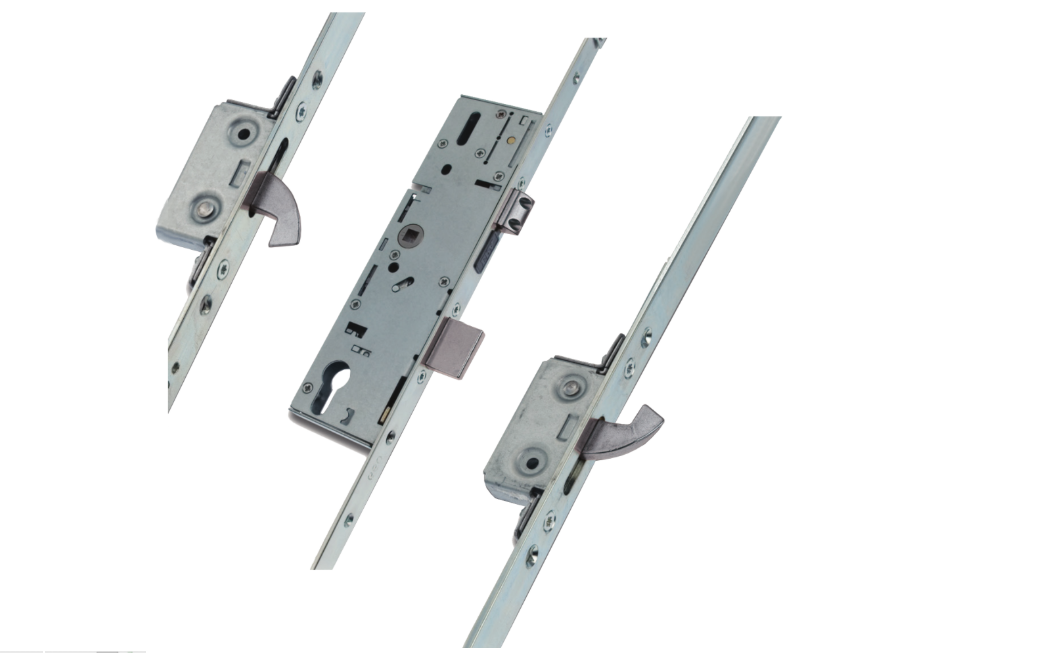

2 Hook 45mm BS 1770mm Multipoint Lock 6345-687-85ZA-RH

The ERA 2 Hook 45mm BS 1770mm Multipoint Lock 6345-687-85ZA-RH is designed for enhanced security and ease of use, making it an excellent choice for both residential and commercial applications.

This multipoint lock features a robust 45mm backset and is equipped with a split spindle operation, allowing for seamless integration into your door system. The latch and deadbolt center case ensures that your door remains secure, while the stamped ERA logo on the faceplate signifies its quality and reliability.

Key Features:

• Gearbox Specifications:

  • Case Height: 220mm
  • Case Width: 63mm
  • Split spindle operation for added versatility.

• Additional Locking Points:

  • Incorporates 2 hook locking points along the full-length strip, providing enhanced security.

• Faceplate Design:

  • 20mm wide radius faceplate, perfect for composite and timber doors, with an overall length of 1770mm.

• Locking Point Distances:

  • Distance A: 875mm
  • Distance B: 700mm

• Croppable Information:

  • This unit is not designed to be cropped on site, so ensure the correct length is selected prior to purchase.

• Handing:

  • The latch can be easily reversed by removing screws, allowing for flexibility in installation.

• Sprung Mechanism:

  • The gearbox features an internal spring mechanism that aids in lever return, eliminating the need for additional sprung handles.

Operation Instructions:

To operate the lock, lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to secure the door. To unlock, simply turn the key one full turn and push down on the lever.

This multipoint lock is suitable for both wooden and composite doors, ensuring a high level of security with its latch and deadbolt system, making it a reliable choice for any entryway.
