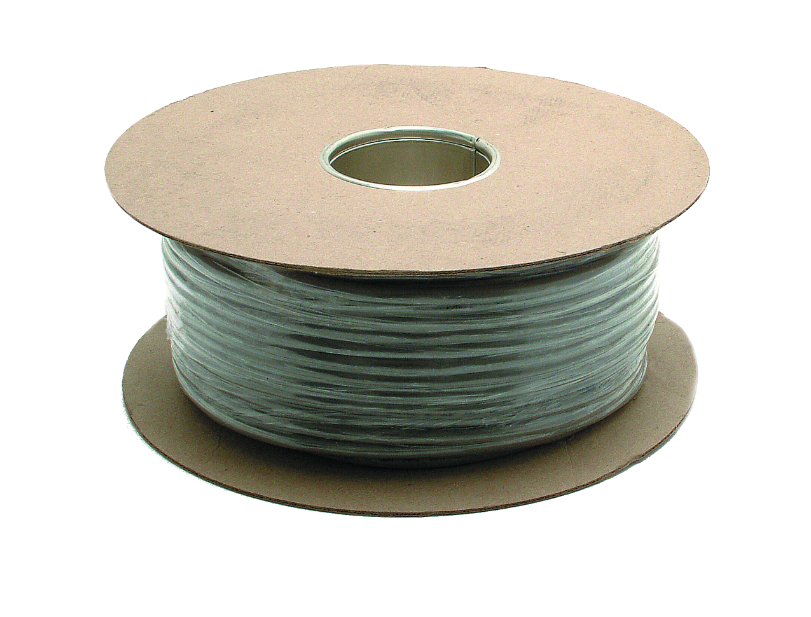

166 10 Core Cable

To ensure optimal performance and reliability, it's crucial to adhere to the specifications when extending the CR9540 reader cable. Here are some key points to consider:

• Cable Extension: The CR9540 reader cable is designed for extensions beyond the standard 5m pre-wired length. Ensure that any additional length maintains the integrity of the signal.
• Maximum Distance: The total distance from the reader to the control unit should not exceed 100m. This limit is essential to prevent signal degradation.
• Voltage Management: For installations where the cable length exceeds 25m, it's recommended to double up the 12V and 0V cores. This practice helps to minimize voltage drop, ensuring that the reader operates effectively over longer distances.
• Installation Environment: The CR9540 cable is suitable for internal use, making it ideal for various indoor applications.
• Cable Specifications: The overall screened 10-core design of the cable provides enhanced protection against interference, ensuring reliable communication between the reader and control unit.

By following these guidelines, you can ensure a successful installation and optimal performance of your CR9540 readers and keypads.
