1439 Rim Sashlock

Product Overview

Rim mounted sash and dead locks are an excellent choice for solid doors and gates, offering a blend of convenience and security without the need for morticing. These locks are affixed directly to the door's surface, making them particularly appealing for Victorian-style homes.

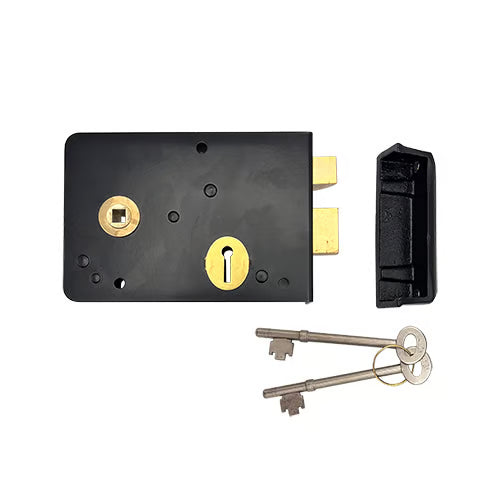

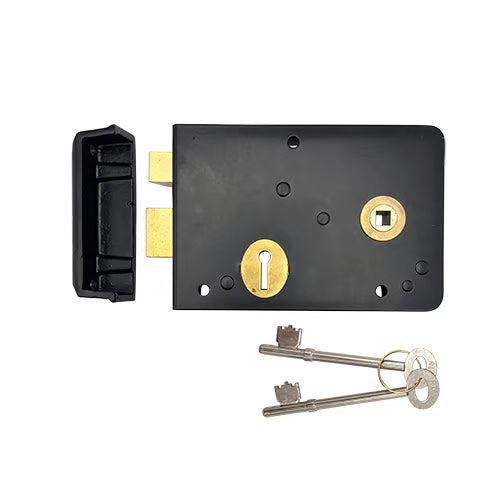

Union 1439 Rim Sashlock

The Union 1439 Rim Sashlock is a widely recognized large case rim lock found across the UK. This surface-mounted lock is designed for basic security, making it suitable for residential and light commercial settings. Its unique case dimensions and the offset heights of the keyway and spindle distinguish it from other locks. The lock comes with two extended length keys that easily reach through the door's thickness from the outside. With its antique-style construction and rustic design, the 1439 adds a touch of elegance to any door.

Functionality

• Latchbolt: Withdrawn by knob on either side
• Deadbolt: Operated by key from both inside and outside

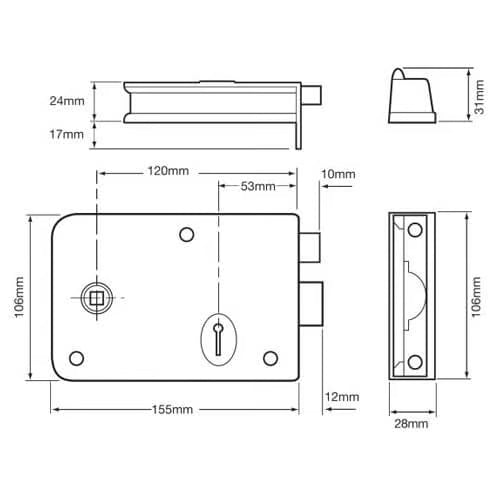

Specifications

• Backset: 54mm
• Width: 155mm
• Height: 106mm
• Depth: 24mm
• Bolt throw: 12mm
• Lip depth: 17mm
• Faceplate to spindle: 122mm
• Spindle size: 8mm
• Differentiation: 12 differs
• Levers: 3
• Keys: Supplied with 2 keys
• Handing: Must be selected when ordering
• Availability: Pre-cut spare keys available, sold in singles, 2 locks per outer box

Finish Options

Available in a classic black finish with electro brass features, the Union 1439 Rim Sashlock is not only functional but also stylish, making it a perfect addition to your home or business security needs.
