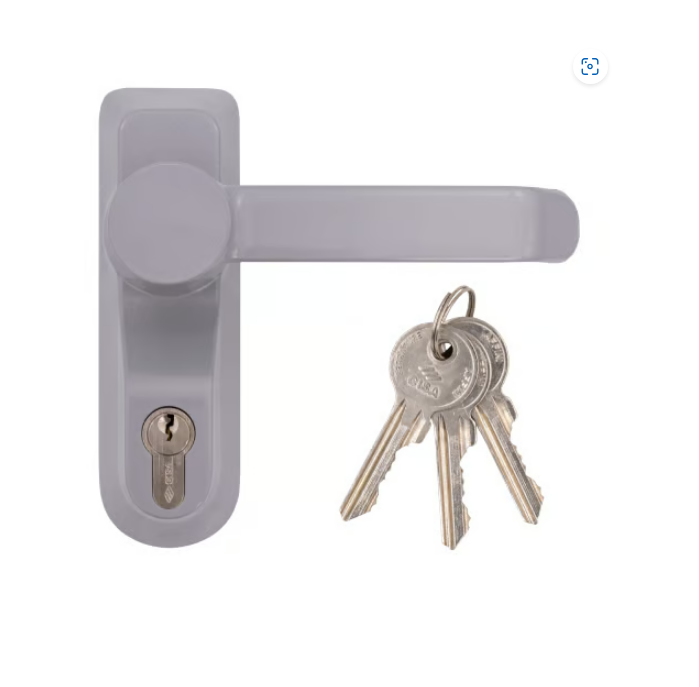

1413E Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors

Product Overview
Introducing the Briton 1413E/LE Outside Access Device, designed for both timber and metal doors. This lever version features a euro cylinder, providing a robust and secure access solution.

Product Specifications

• Height: 175mm
• Width: 55mm
• Projection: 81mm
• Lever Length: 133mm
• Door Thickness Compatibility: Suits doors up to 40mm and 70mm thick
• Cylinder: Supplied with a half euro cylinder, includes 3 keys, adjustable cam, and side entry retaining screw
• Replacement Cylinder Code: I093010N (Non Restricted)
• Masterkey System Compatibility: Can be incorporated into a masterkey system or keyed alike suite in-house (replacement of the euro cylinder required)
• Shear Pin Mechanism: The lever variant is attached to the body by a shear pin, which breaks under severe abuse to protect the mechanism; the shear pin can be easily replaced
• Fixings: Supplied with fixings suitable for timber or metal doors
• Packaging: Boxed
• Handing: Non-handed (lever is reversible)
• Mounting: Surface mounted on the outside of the door using machine screws

Operation

• Locked State: When locked, the lever disengages from the mechanism but still pulls down, preventing unauthorized entry.
• Unlocked State: When unlocked, the lever, spindle, and mechanism engage, allowing the shoot bolts, latch, or pullman latches to be withdrawn from outside the door.
• Lever Locking: Once the door is opened from either side, the lever remains unlocked until re-locked with a key. Note: The unit is NOT self-locking.

This device combines functionality and security, making it an ideal choice for various applications.
