1413E Outside Access Device - Knob Handle with Euro Cylinder - For Timber or Metal Doors

Product Information

Briton 1413E Outside Access Device for Timber or Metal Doors

The Briton 1413E is a reliable outside access device designed for both timber and metal doors. This knob version features a Euro cylinder for enhanced security and ease of use.

Key Features:

• Knob Version with Euro Cylinder: Ideal for replacing original rim cylinder versions. Note that an adaptor plate (Part Number - 1413AP) may be necessary to cover original screw holes.

• Operation:

  • When locked, the knob disengages from the mechanism, allowing it to spin freely and preventing unauthorized entry.
  • When unlocked, the knob, spindle, and mechanism engage, enabling the withdrawal of shoot bolts, latches, or Pullman latches from outside the door.
  • The knob remains unlocked after opening the door from the outside and must be re-locked with a key. Please note that this unit is NOT self-locking.

Product Specifications:

• Height: 175mm
• Width: 55mm
• Projection: 87mm
• Suitable for Doors: Up to 40mm and 70mm thick

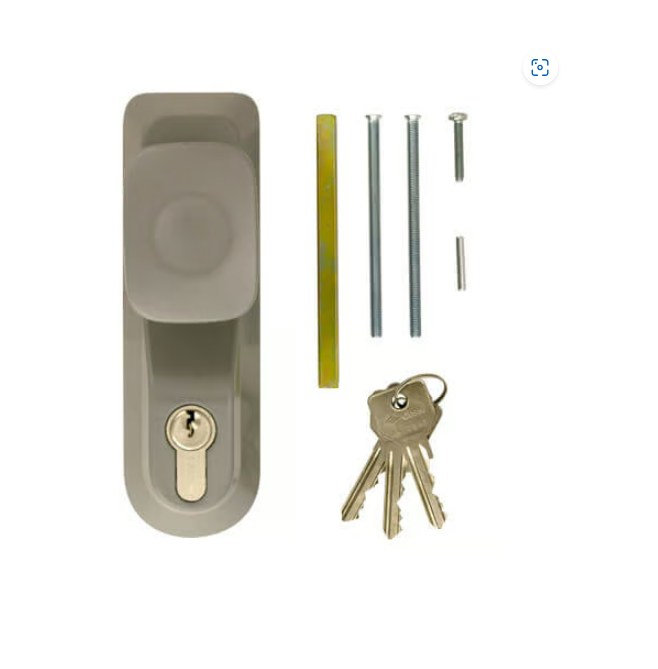

• Supplied with:
  • 3010 half euro cylinder (includes 3 keys, adjustable cam, and side entry retaining screw)
  • Suggested replacement cylinder code: I093010N (Non Restricted)
  • Fixings for both timber and metal doors
• Packaging: Boxed
• Handing: Non handed
• Mounting: Surface mounted on the outside of the door using machine screws

This device can be integrated into a master key system or keyed alike suite in-house, although the euro cylinder will require replacement for this purpose. The Briton 1413E is an excellent choice for enhancing the security and accessibility of your doors.
