Product Overview: Union 1332 Drawback Lock

The Union 1332 Drawback Lock is an innovative nightlatch designed for residential front doors, providing enhanced security with its unique operation. This lock features a 60mm backset and a distinctive trigger-like lever for retracting the latch, offering a user-friendly experience.

Key Features:

• Automatic Engagement: The latch engages automatically when the door is closed, ensuring your property is secured without additional effort.
• Unique Retracting Mechanism: Instead of traditional thumbturns, the 1332 utilizes a sprung trigger lever that connects directly to the latch bolt, allowing for easy retraction by pulling the lever back.
• Dual Operation: The key operates both the latch and a separate deadbolt, providing an extra layer of security. Turning the key towards the frame deadlocks the door, while an internal cylinder allows for key deadlocking from inside.

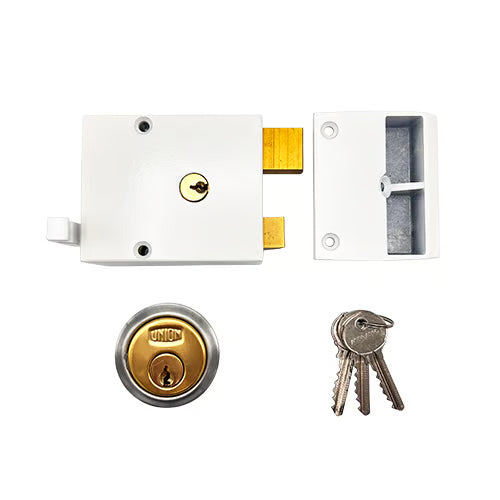

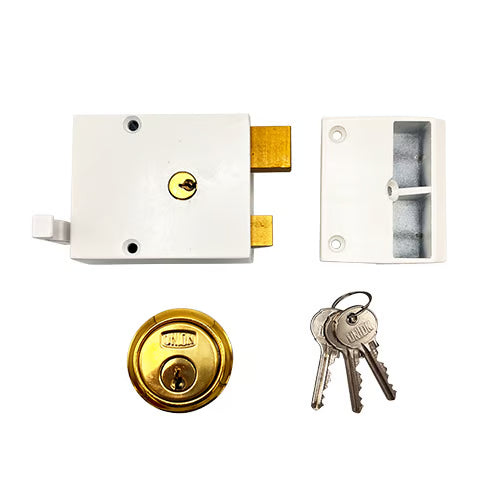

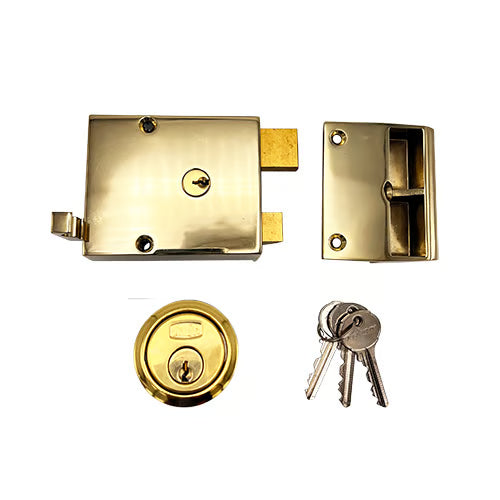

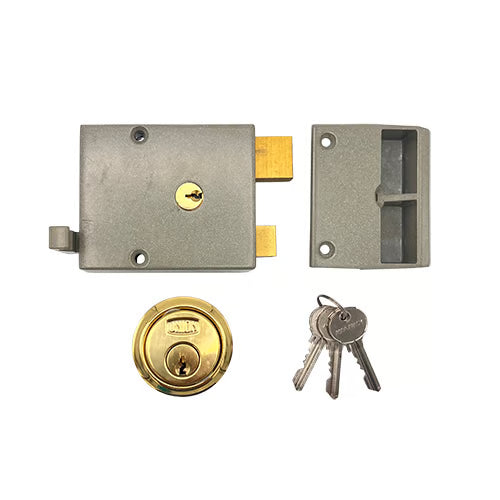

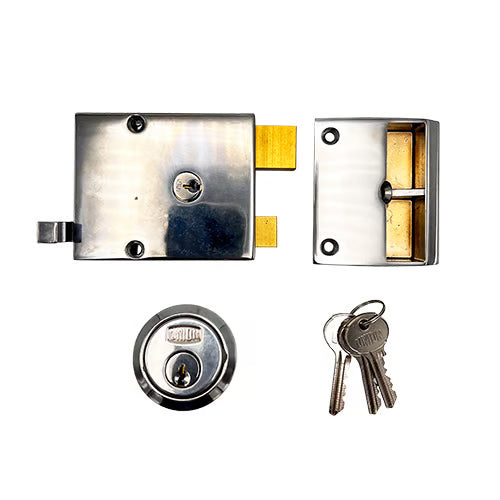

• Versatile Finishes: Available in a variety of finishes to match your door aesthetics, the lock comes complete with a rim cylinder, three keys, and fitting instructions.

Product Specifications:

• Key Operation: Accessible from the outside
• Drawback Handle: Operated from the inside
• Bolt Operation:
• 1st full turn throws the bolt
• 2nd turn double throws the bolt
• Backset: 60mm
• Case Dimensions:
• Width: 92mm
• Height: 76mm
• Bolt Length: 20mm
• Max Door Thickness: 35mm - 60mm

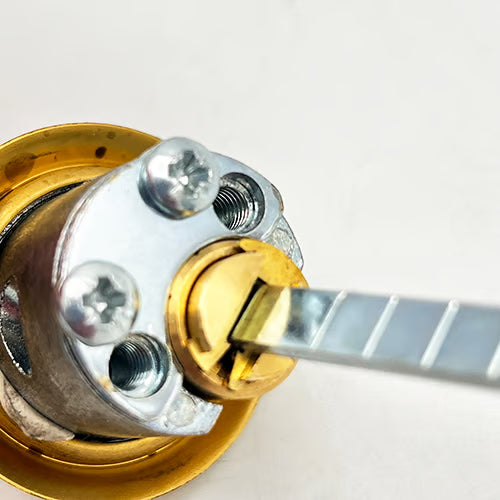

• Cylinder: 5 pin 1X10 Union section included
• Replacement Cylinders: Available for purchase
• Masterkey Systems: Cylinders can be ordered for existing masterkey systems

This lock combines simplicity with effective security, making it an excellent choice for homeowners looking to enhance their door security.
