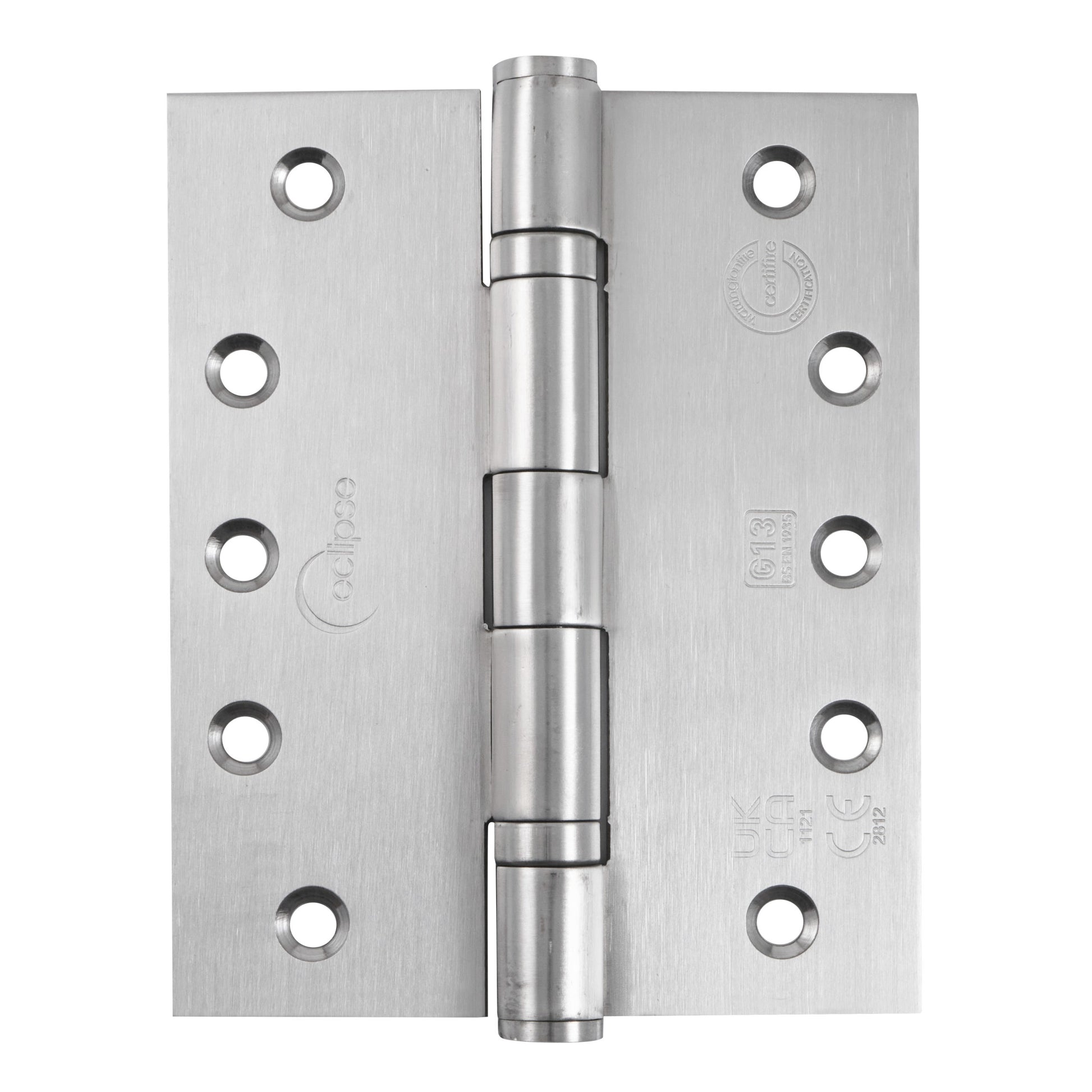

127x102mm Grade 13 Stainless Steel Ball Bearing Hinge

Eclipse Branded Hinge Specifications

Description

• Grade: 13 (120kg door weight)
• Fire Rating: BSEN1634 Fire rated FD30, 60, 90 & 120 Timber frame; FD240 Steel frame
• Performance: BSEN1935 Performance tested for 200,000 cycles
• Certifications: CE2812, UKCA 1121, Certifire approved
• Hinge Size: 127x102x3mm
• Gauge: 12 Gauge Countersunk
• Included: Supplied with 12×1.1/2″ Pozi Drive 3/4″ Threaded Screws

Specification

• Finish: Satin Stainless Steel
• Pack Quantity: 1 Pair
• Base Material: Stainless Steel
• Size: 127x102x3mm
• Fixings: Yes
• Bearing Type: Ball Bearing
