1139 Rim Deadlock

Product Overview

Rim mounted sash and dead locks are an excellent choice for solid doors and gates, offering a blend of security and convenience without the need for morticing. These locks are affixed directly to the door's surface, making them particularly appealing for Victorian-style homes, as well as for gates and internal doors.

Union 1139 Rim Deadlock

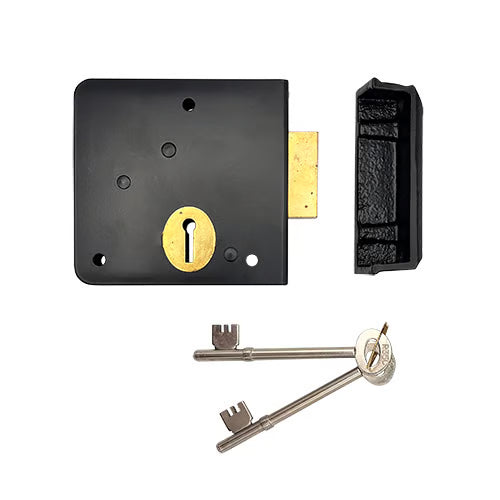

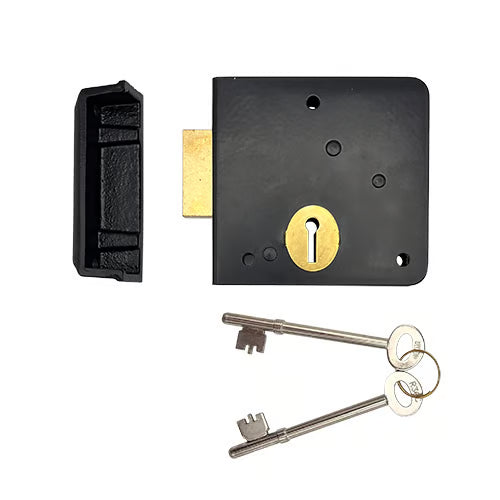

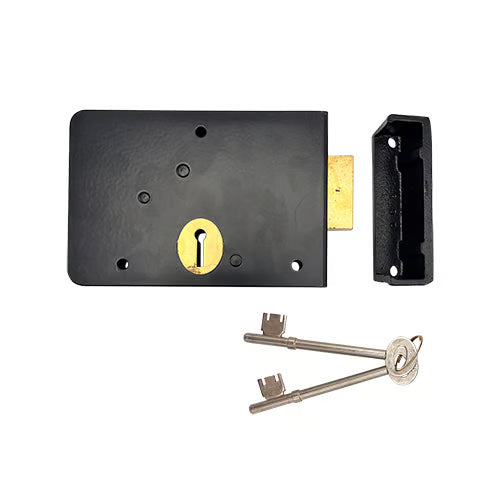

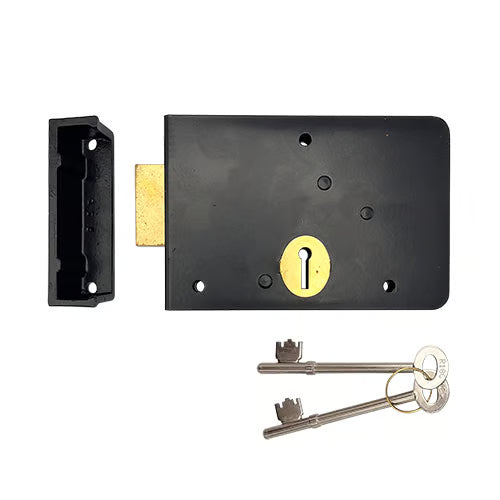

The Union 1139 is a robust rim deadlock available in two case sizes: 4 inches and 6 inches. It features a reliable 3 lever mechanism and offers a backset option of either 51mm or 76mm. With a bolt throw of 15mm, this lock can be operated from both sides of the door, ensuring ease of use. The lock is finished in a durable black coating with brass accents, and it comes complete with two extended keys and a staple for installation.

Important Note on Handing

These lock cases are handed, so please consult the handing chart to select the correct variation when placing your order.

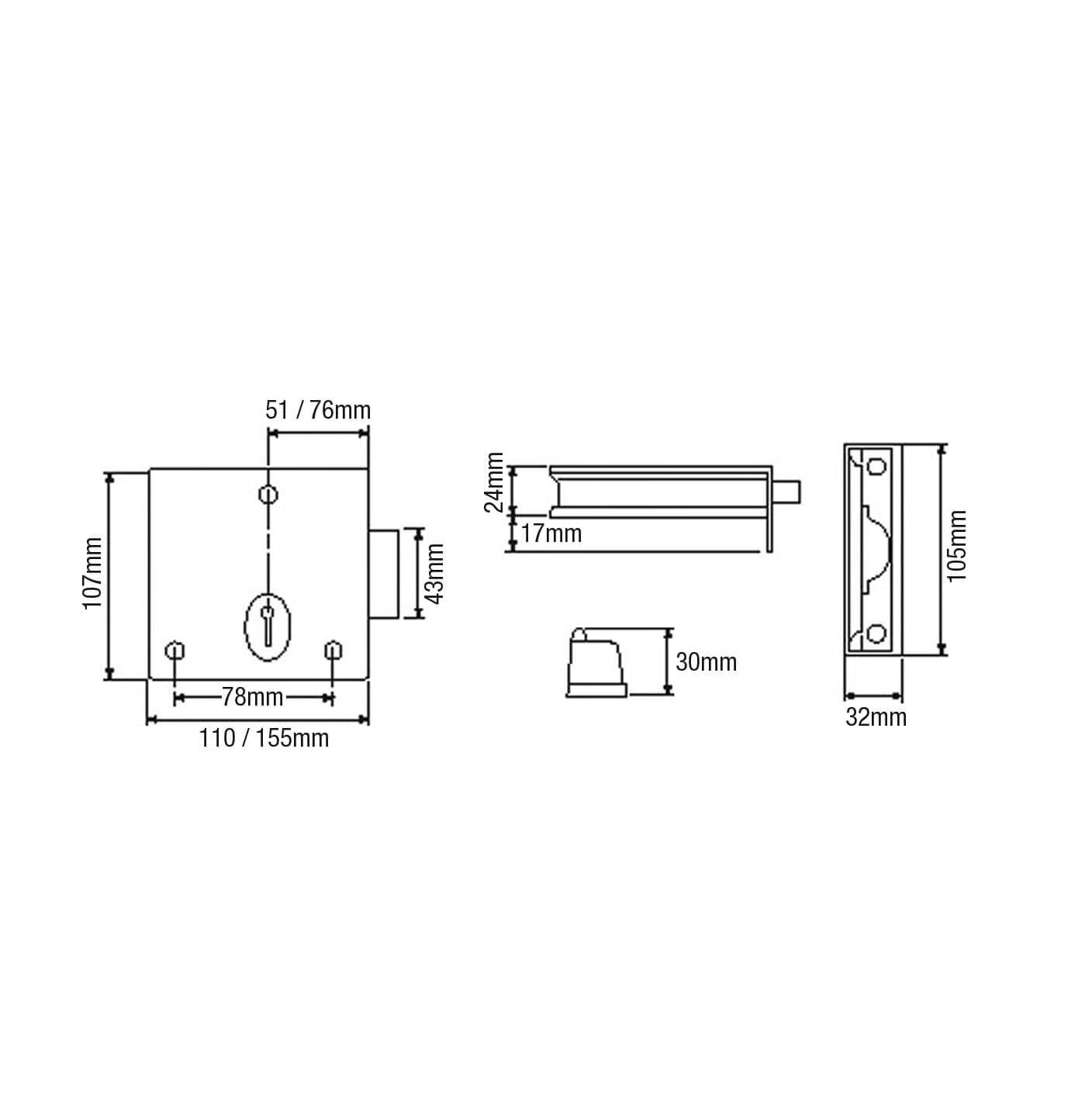

Product Specifications

• Unlocking Mechanism: Deadbolt can be unlocked by key from either side
• Backset Options: 51mm or 76mm
• Case Width:
  • 4" case: 109.5mm
  • 6" case: 155mm
• Case Height: 106mm
• Case Depth: 24mm
• Bolt Throw: 15mm
• Mechanism Type: 3 Lever
• Key Supply: Supplied with 2 keys
• Handing: Locks are handed
• Spare Keys: Pre-cut spare keys available
• Packaging: Available in singles; 2 locks per outer box

This Union 1139 Rim Deadlock combines functionality with aesthetic appeal, making it a perfect addition to your security solutions.
