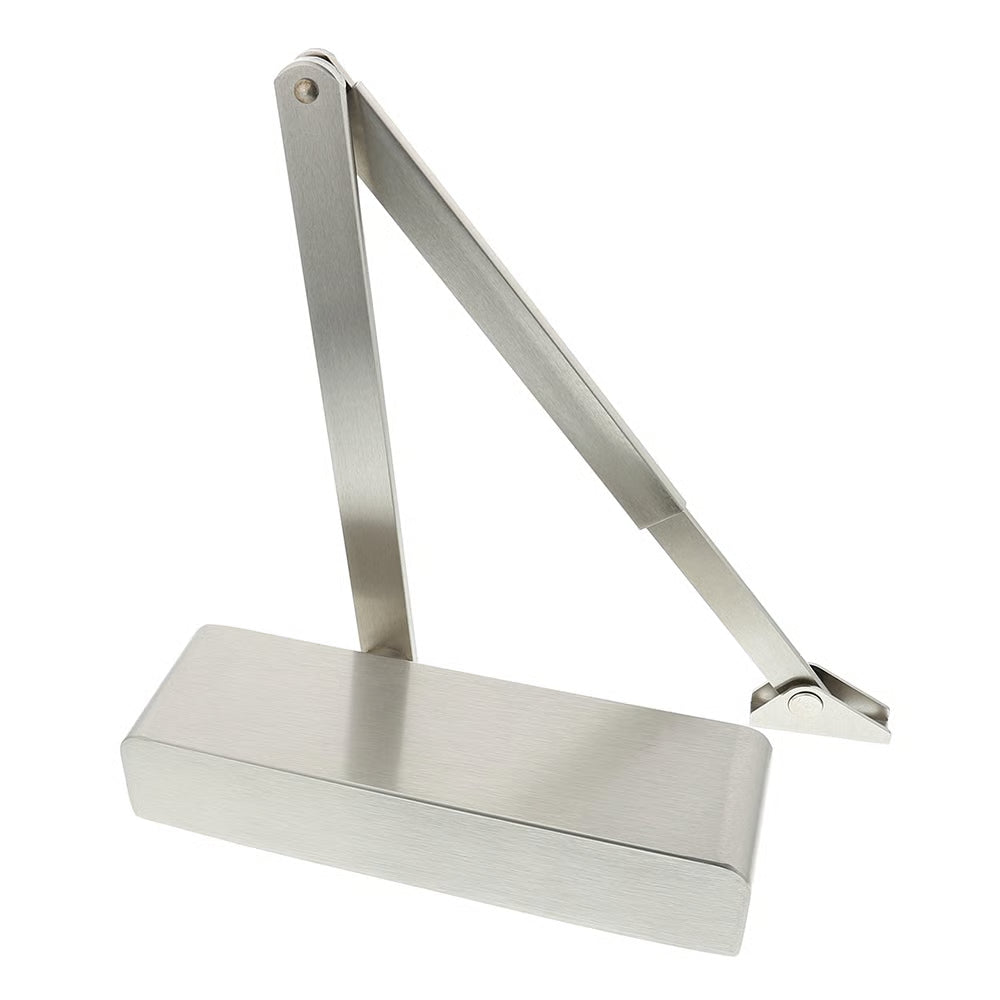

1120 Size 2-4 Overhead Door Closers

Product Overview

Introducing the Briton 1120 Overhead Door Closers, designed for versatility and reliability. With an adjustable strength ranging from size 2 to 4, these closers are perfect for various door applications.

Key Features

• Weight Capacity: Suitable for doors weighing up to 80kg.
• Width Compatibility: Accommodates doors with a maximum width of 1100mm.
• Compliance: Tested to BS EN1154 standards and CE Marked for quality assurance.

Functional Highlights

This door closer is equipped with essential features to enhance usability:

• Backcheck: Prevents the door from opening too quickly, protecting walls and adjacent fixtures.
• Adjustable Closing Speed: Customize the speed at which the door closes for optimal convenience.
• Adjustable Latch Action: Fine-tune the latch action to suit your specific needs.

Product Specifications

• Fitting Type: Overhead
• Fire Tested: EN1634 - 120 Minutes (Timber), 240 Minutes (Steel)
• Applications: Compatible with Fig 1, Fig 61, and Fig 66.
• Dimensions:
  • Height: 60mm
  • Width: 38mm
  • Length: 236mm
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Strength Adjustment: Size 2-4
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Delayed Action: No
• Backcheck: Yes
• Hold Open Feature: No
