11/12 Window Deadbolt Gearbox - Clip Fit (Bayonet Push and Twist) Rods

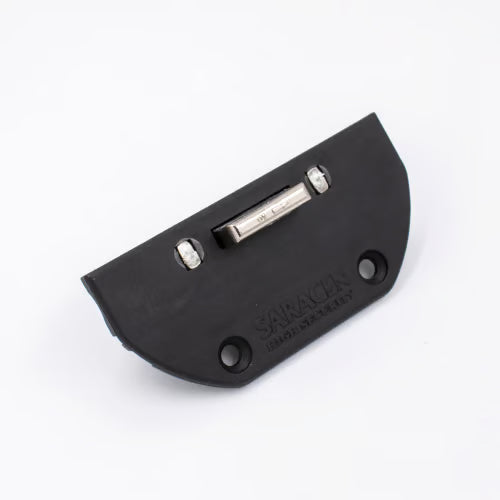

The Saracen 11 and 12 gearboxes are designed for reliable and secure window operation. Featuring a sleek black cover plate, these gearboxes connect effortlessly to rods through a simple push and twist mechanism, ensuring a secure lock.

Key Features:

• Compatibility: Early versions include a metal faceplate and may be stamped with Halo, WHS, or Bowater branding.
• Extension Pieces: Sold separately for customized installations.
• Backset Measurement: 22mm, ensuring a snug fit for various window types.
• Handed Design: Each model is specifically designed for right or left-hand applications.

Handing Details:

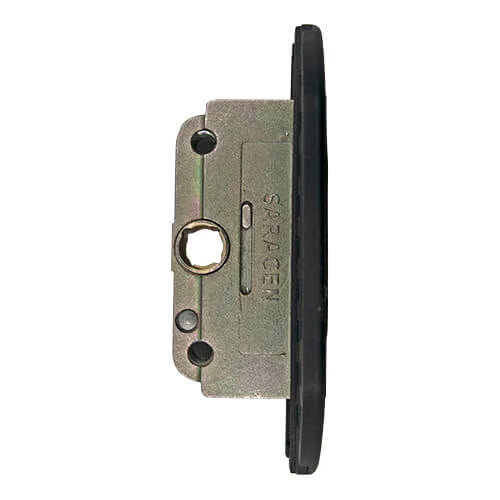

• SARACEN11 - Right Hand
  • Side Hung Windows: Positioned on the left side when viewed from inside; the arrow on the deadbolt points downwards.
  • Top Hung Windows: Located at the bottom; the arrow on the deadbolt points to the right.

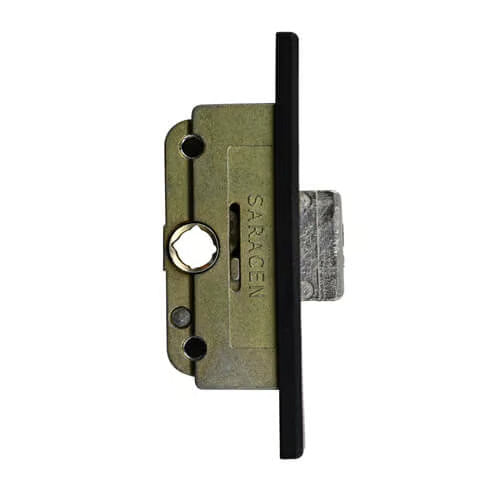

• SARACEN12 - Left Hand
  • Side Hung Windows: Positioned on the right side when viewed from inside; the arrow on the deadbolt points downwards.
  • Top Hung Windows: Located at the bottom; the arrow on the deadbolt points to the left.

Product Specifications:

• Faceplate Dimensions: 90mm x 40mm
• Body Height: 61mm x 30mm
• Backset: 22mm
• Bolt Throw: 11.5mm
• Rods: Clip Fit (Bayonet Push and Twist)
• Operation: Lift handle to engage locking points
• Handed: Yes
• Extension Pieces: Supplied separately
• Packaging: Supplied as singles

These gearboxes are engineered for durability and ease of use, making them an excellent choice for enhancing the security and functionality of your windows.
