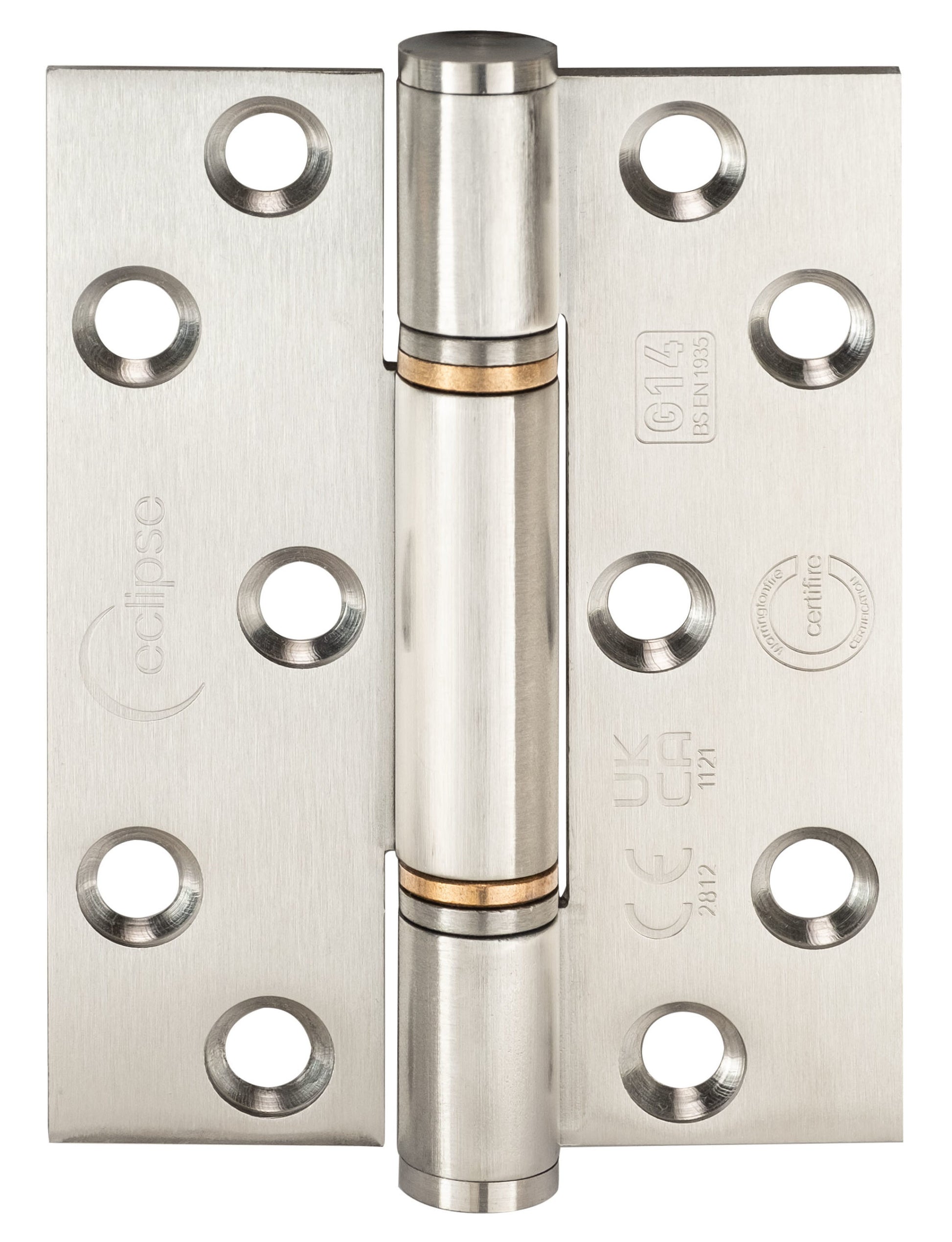

102x76mm Grade 14 Stainless Steel Thrust Bearing Hinge

Introducing the Eclipse Stainless Steel Thrust Bearing Hinge, designed for durability and performance in high-demand environments.

This hinge is rated at Grade 14, supporting a total door mass of 160 kg, making it ideal for heavy-duty applications. Crafted from SUS 201 stainless steel, it ensures longevity and resistance to corrosion.

Key Features:

• Performance Tested: BS EN1935 certified for 200,000 cycles to Grade 14, ensuring reliability over time.
• Fire Tested: Complies with BS EN1634 standards for FD30, 60, 90, and 120-minute timber doors, and FD240-minute steel doors, providing peace of mind in fire safety.
• Dimensions: Measures 102x76x3mm, with a robust 12 gauge countersunk design for secure installation.
• Screws Included: Supplied with 12×1.1/2″ Pozi Drive 3/4″ threaded screws for easy fitting.
• Pack Options: Available in convenient packs of 2 or 3 pieces to suit your project needs.

Specifications:

• Finish: SSS (Satin Stainless Steel)
• Pack Quantity: Choose between 2 pack or 3 pack
• Grade: Grade 14 (160 kg)
• Base Material: SUS 201 Stainless Steel

Upgrade your door hardware with the Eclipse Stainless Steel Thrust Bearing Hinge for unmatched strength and reliability!
