102×102 Ball Bearing Hinge (7 Finishes)

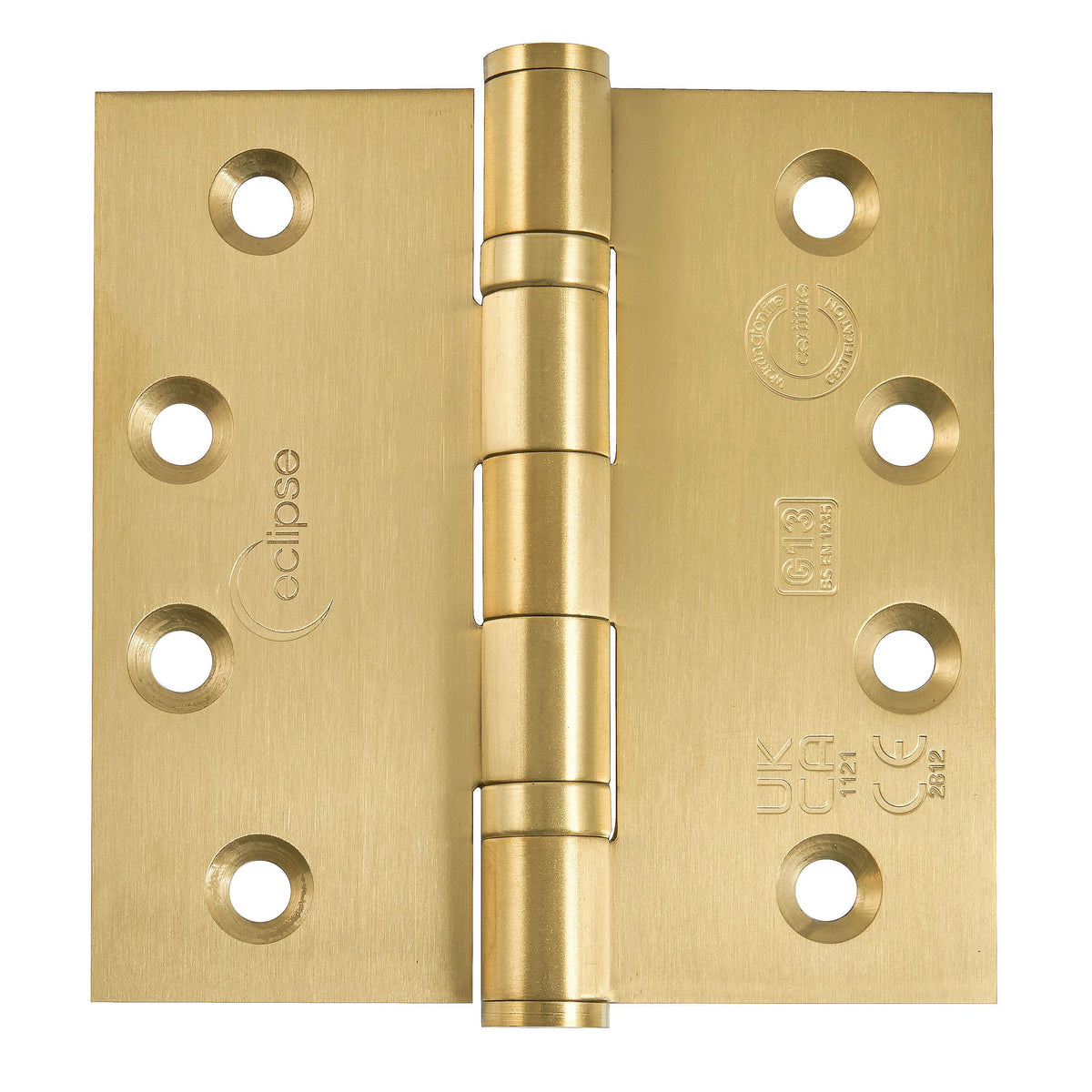

Eclipse Stainless Steel Bearing Hinge

Description

The Eclipse Stainless Steel Bearing Hinge is expertly crafted to ensure durability and performance.

• Manufactured With: 10mm Radius
• Grade: 13 (120 Kg Total Door Mass)
• Material: SUS 201 Stainless Steel
• Certifications: CE 2812, UKCA 1121, Certifire CF336
• Performance Testing: BS EN1935 tested for 200,000 cycles to Grade 13
• Fire Testing: BS EN1634 rated for FD30, 60, 90, 120 minute timber doors and FD240 minute steel doors
• Dimensions: 102x102x3mm
• Gauge: 12 Gauge Countersunk
• Included Fixings: Supplied with 12×1.1/2″ Pozi Drive 3/4″ threaded screws

Specification

• Finish Options:

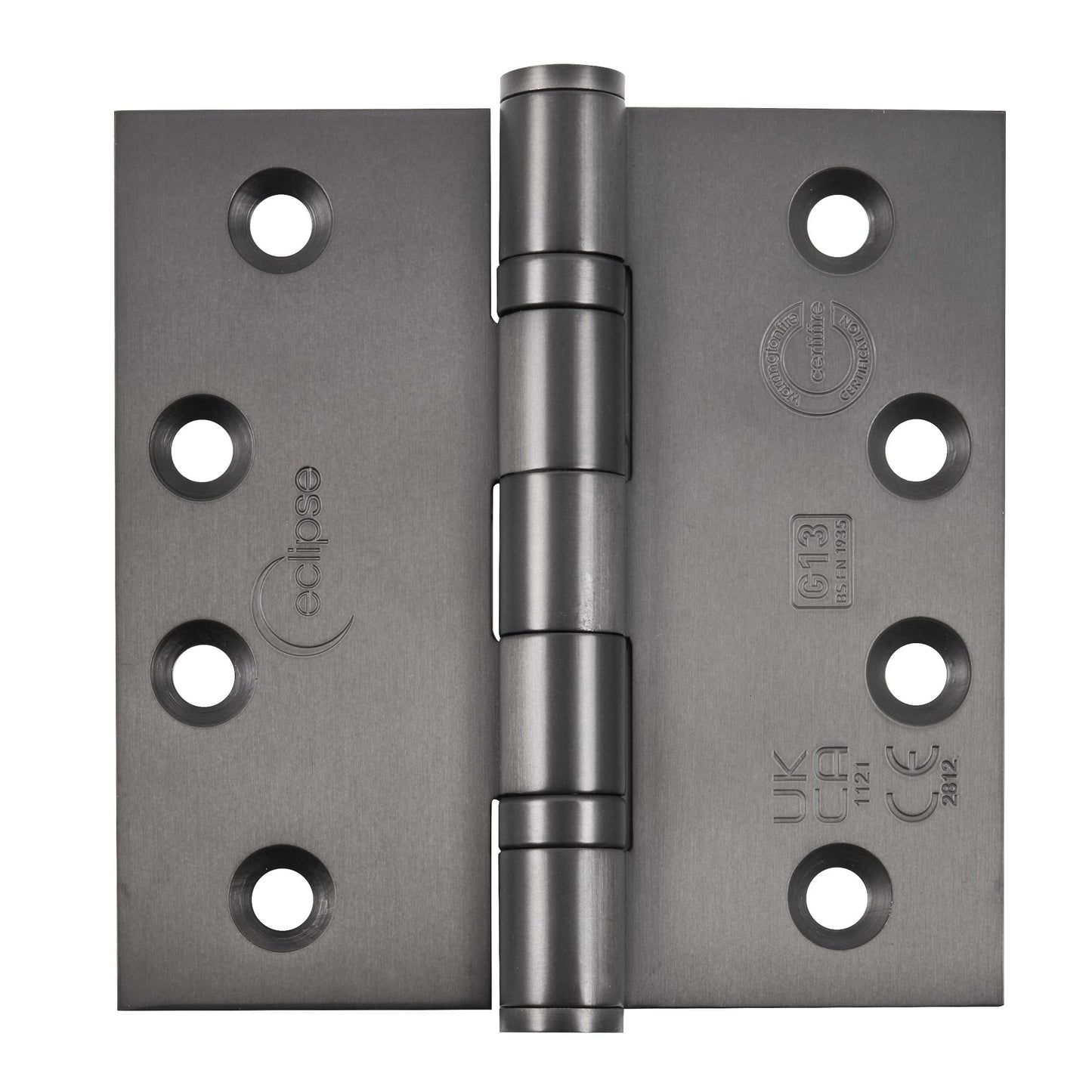

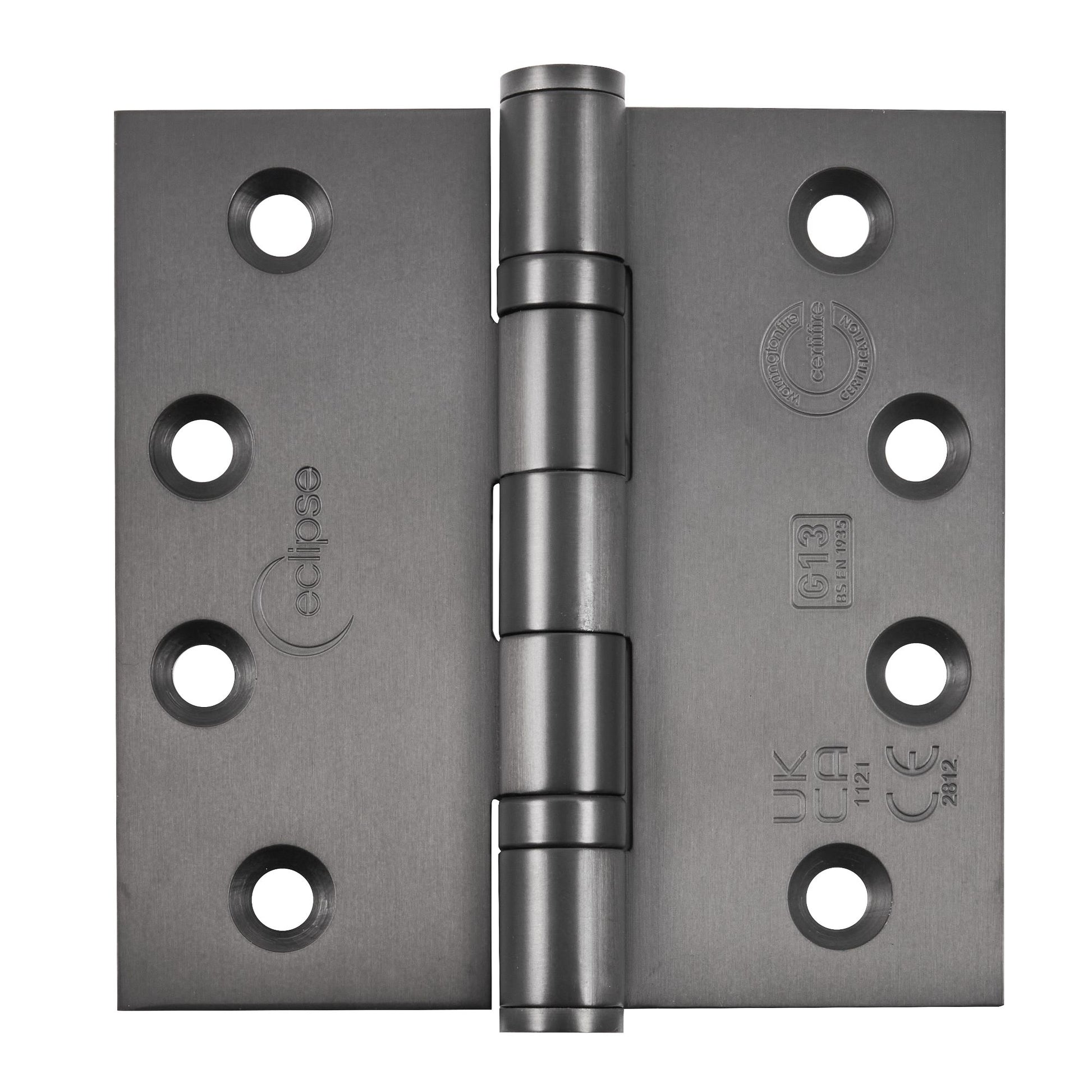

• Dark Bronze

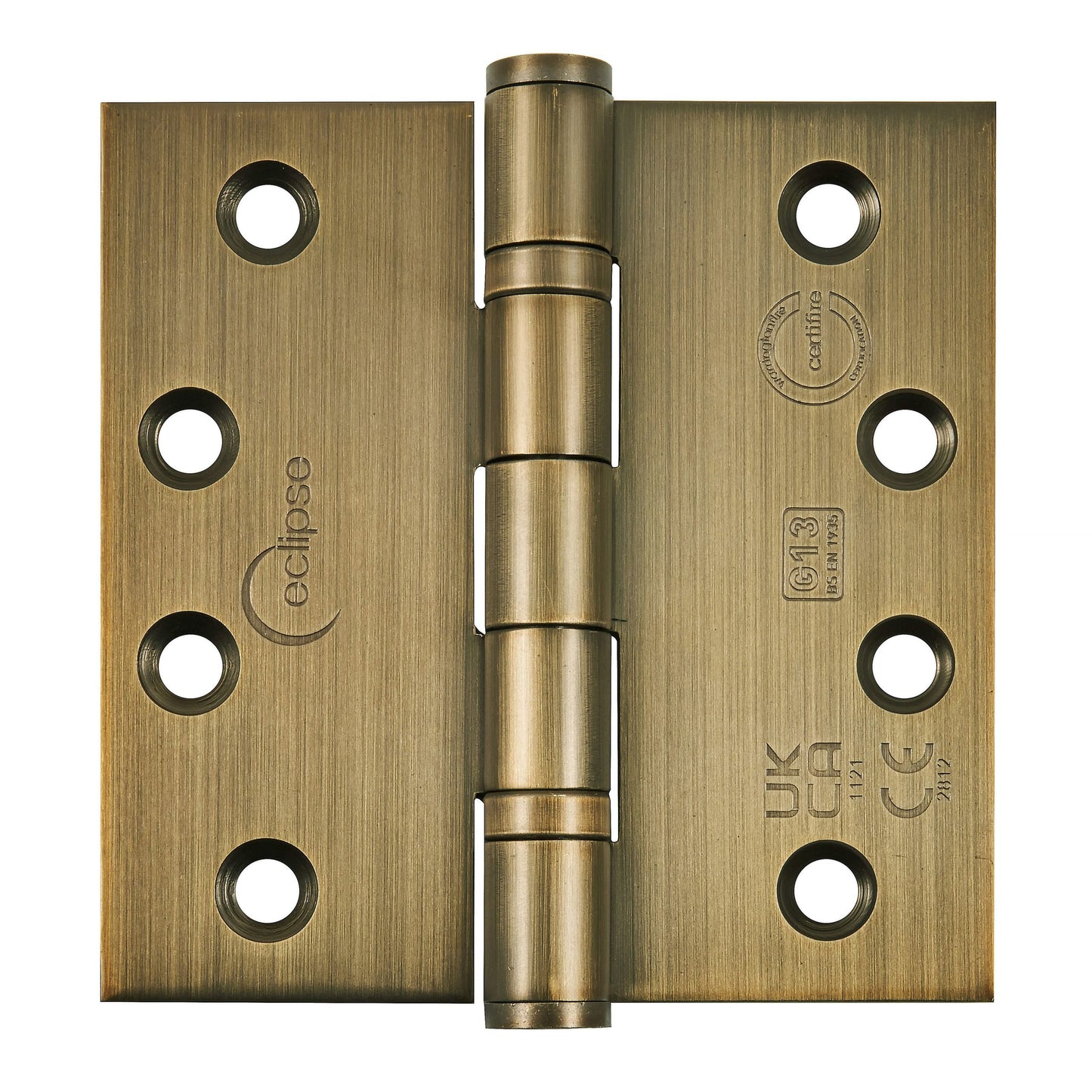

• Matt Antique Brass

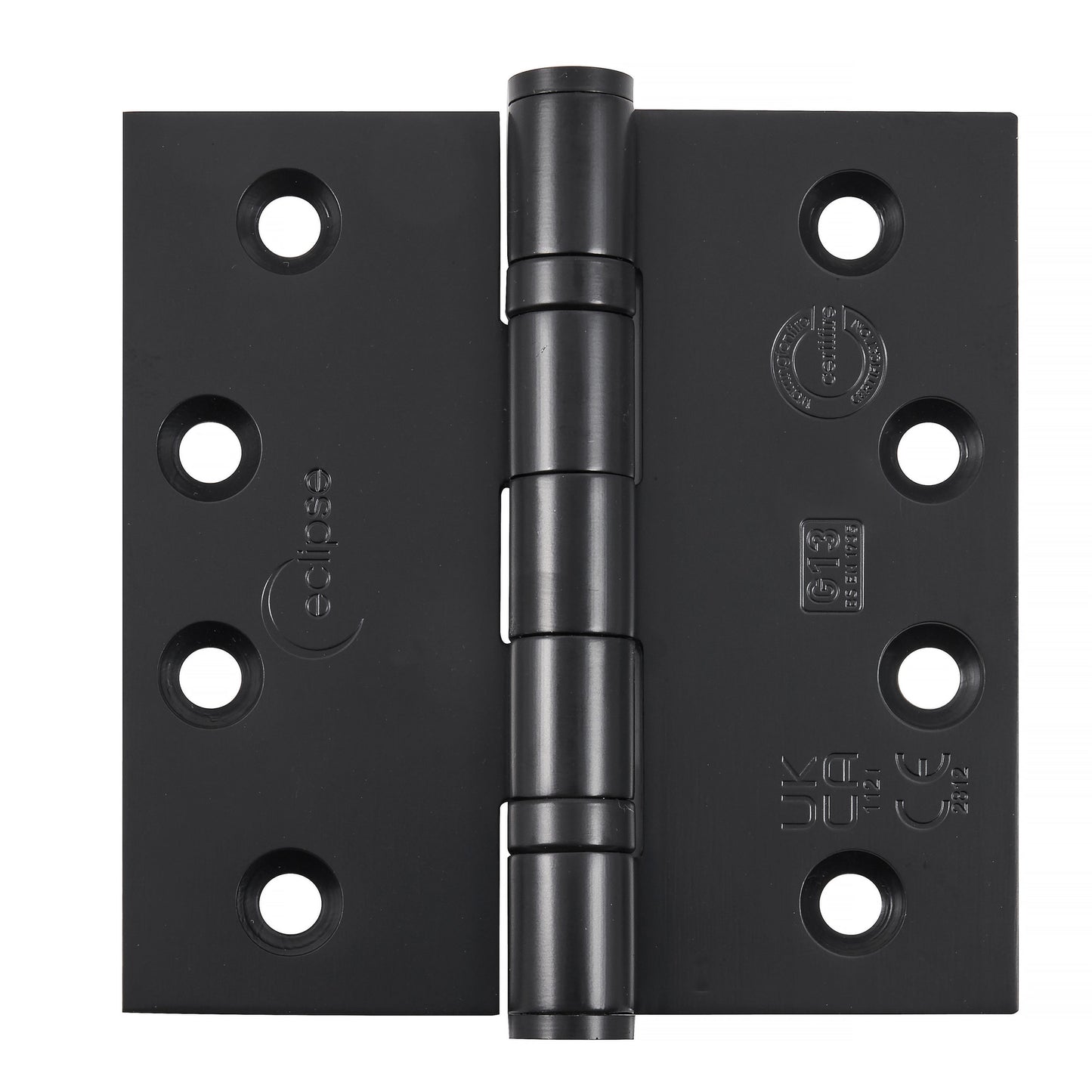

• Matt Black

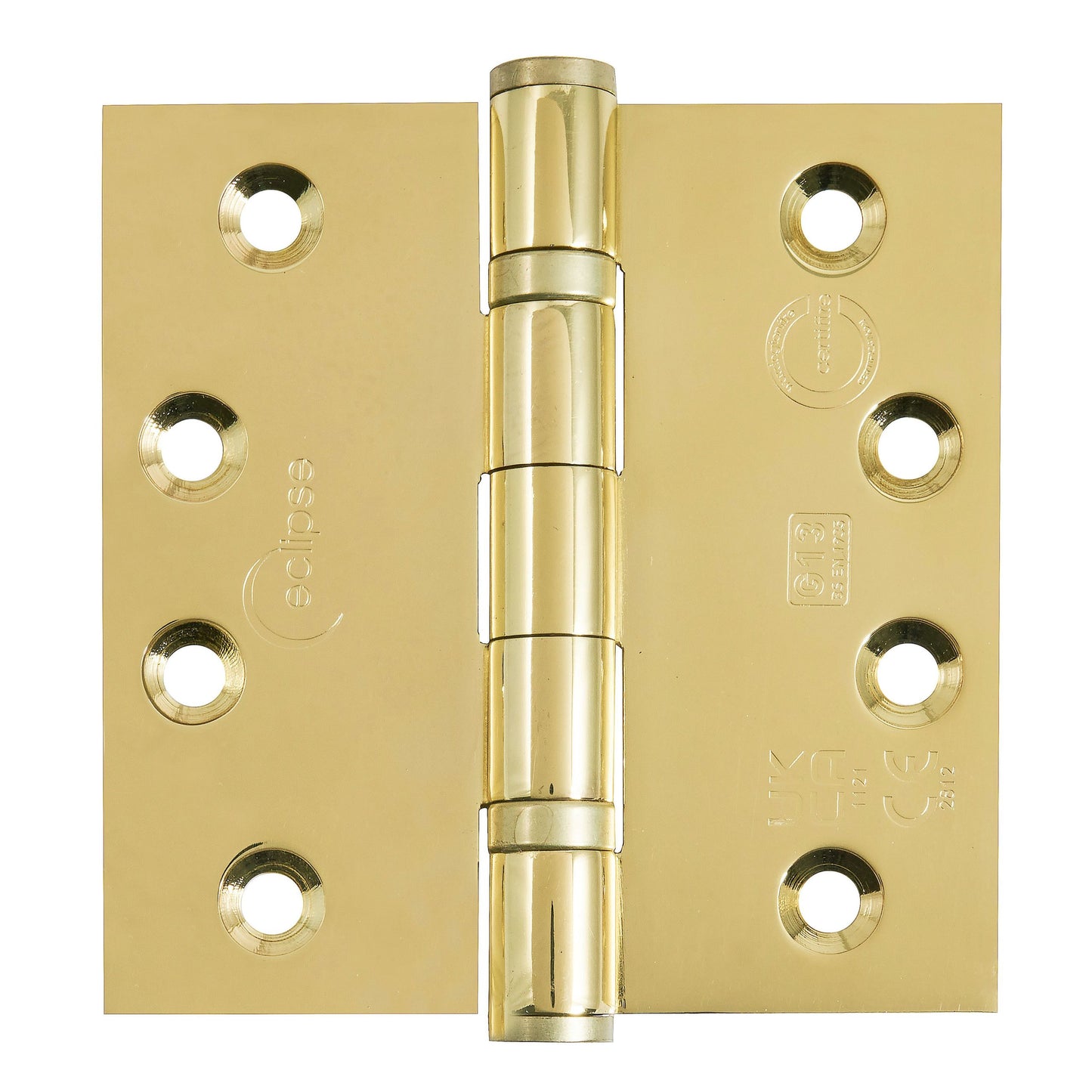

• Polished Brass

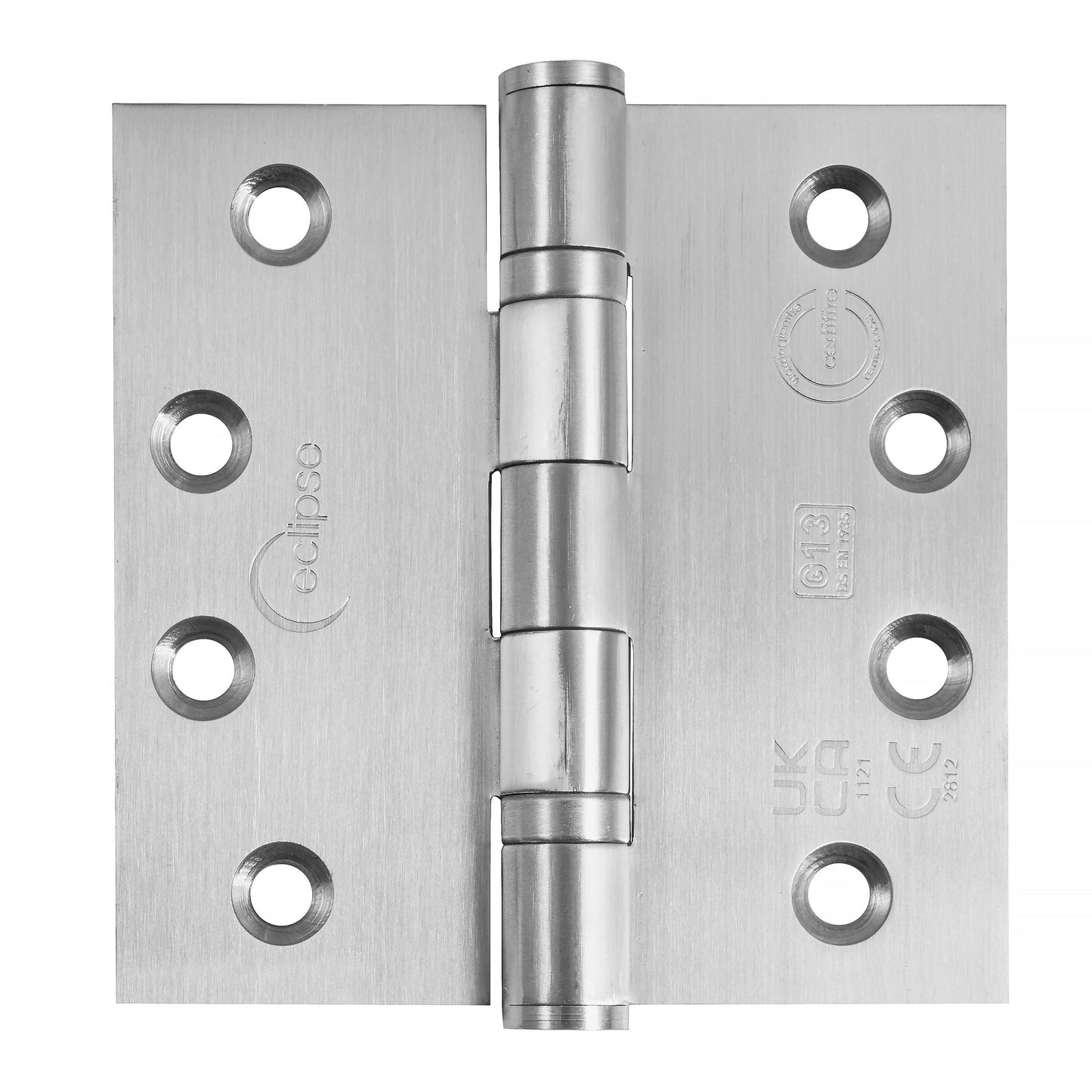

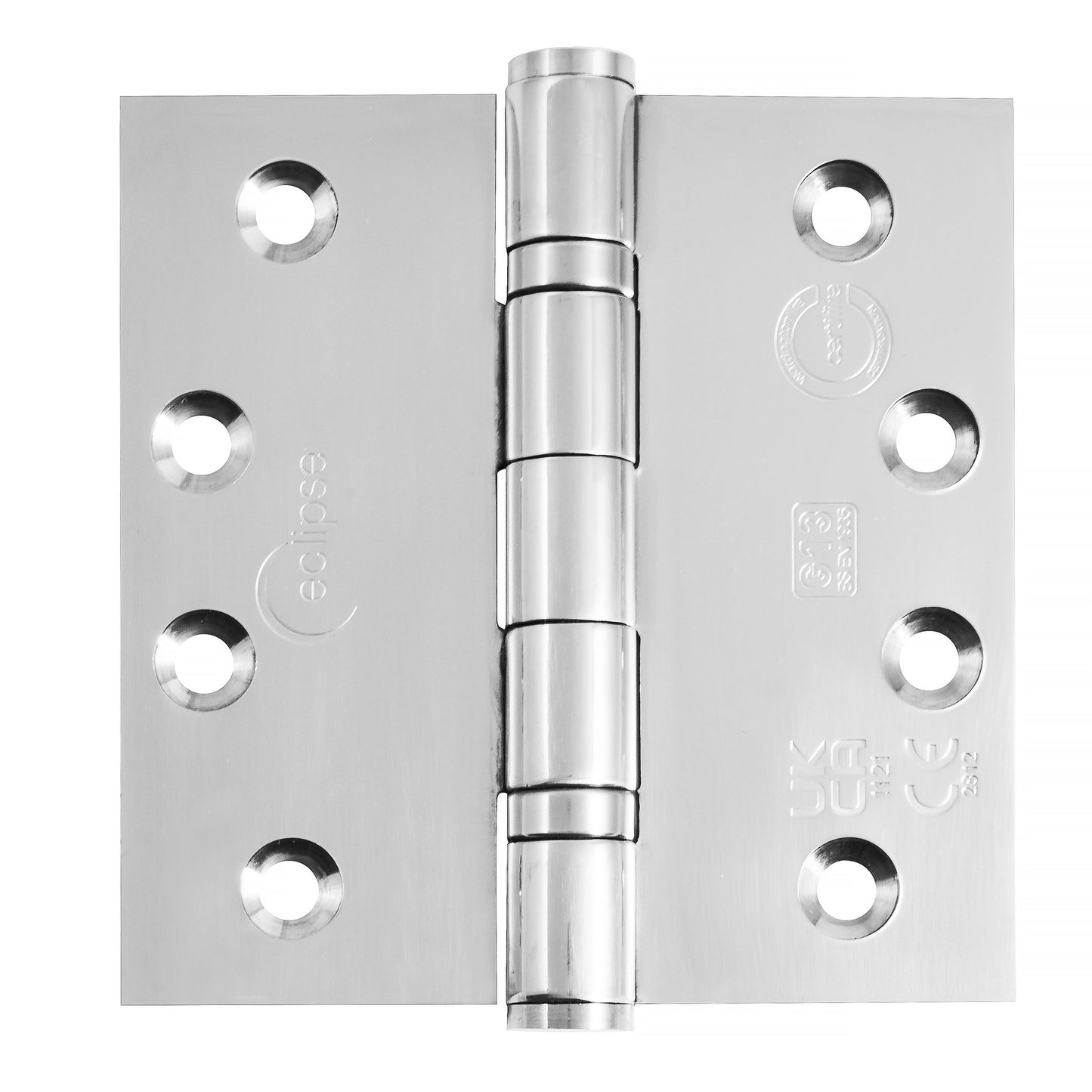

• Polished Stainless Steel

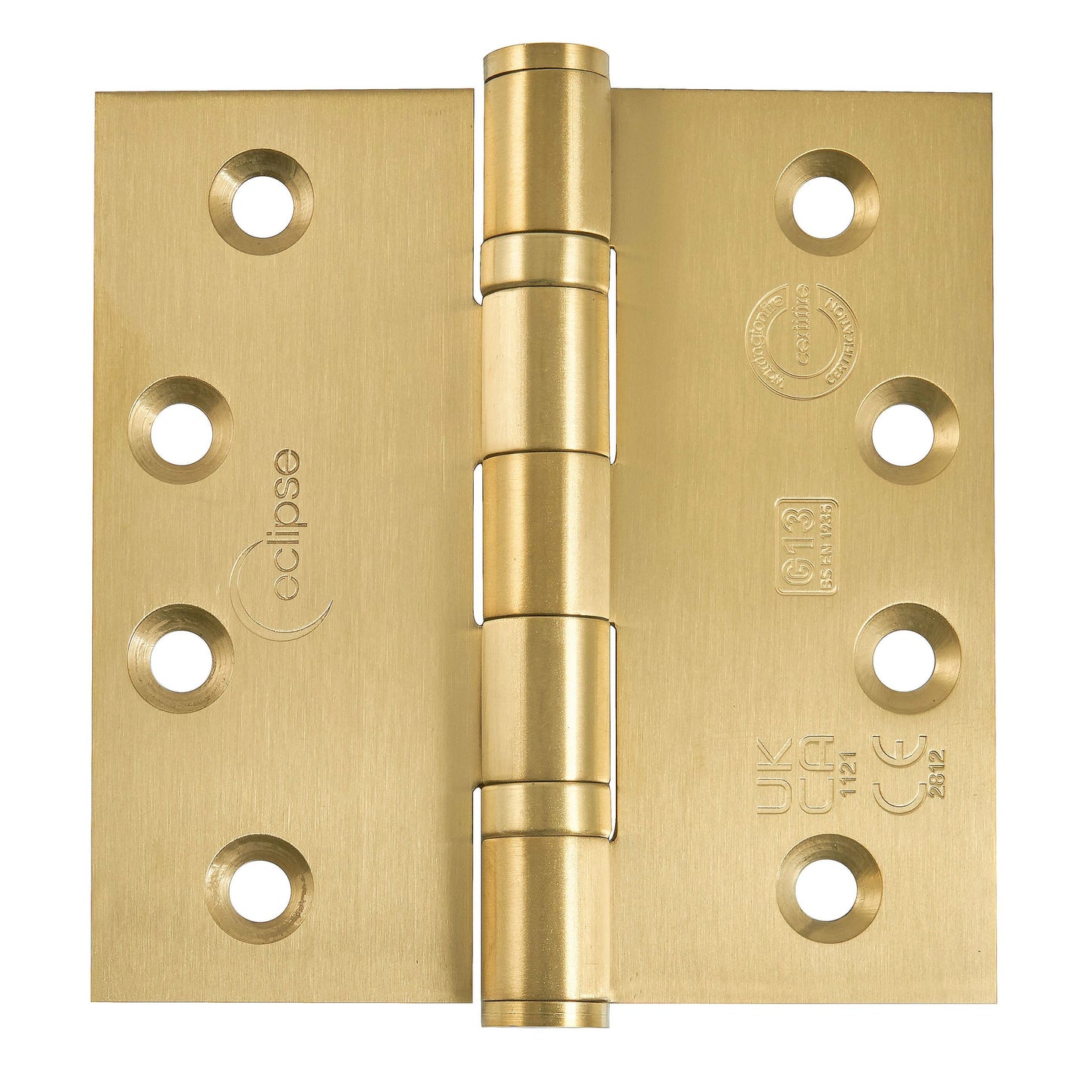

• Satin Brass
• Satin Stainless Steel
• Pack Quantity: 1 Pair
• Base Material: Stainless Steel
• Size: 102x102x3mm
• Fixings Included: Yes
• Bearing Type: Ball Bearing
• BSEN 1935 Grade: 13
• Certification: CE

This hinge combines aesthetic appeal with robust functionality, making it an ideal choice for various door applications.
