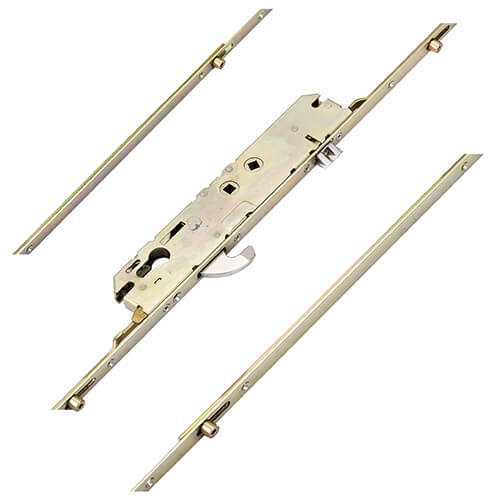

1 Latch Hook 4 Rollers Double Spindle Multipoint Door Lock

Product Overview: Millenco Mantis 1 Multipoint Door Lock

The Millenco Mantis 1 multipoint door lock is designed for enhanced security and durability, featuring a robust mechanism with 4 rollers and 1 latch. This lock is part of the Yale group of companies and is recognized for its unique gearbox configuration with 86/117mm centres.

Key Features:

• Variants Available: The Mantis 1 comes in three different configurations:
  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • 4 roller version
  • Passive lock version
• Compatibility: The lock is suitable for both timber and composite doors, with specific versions designed for UPVC doors.
• Cover Plate Options: Some Mantis 1 locks may include a cover plate (24mm or 44mm wide) for aesthetic purposes. This cover plate can be reused with replacement locks, although adjustments may be necessary for proper fit.
• Identification: The Mantis 1 is easily identifiable by its double spindle design and unique centre measurements. Early versions may lack branding on the faceplate, so checking these specifications is crucial.

Specifications:

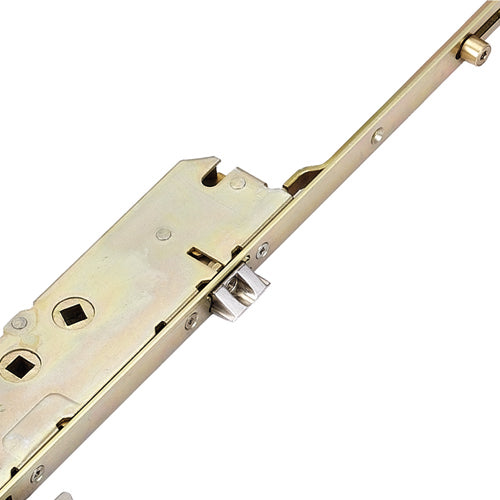

• Gearbox Configuration: Double spindle for lift lever or nightlatch operation
• Backset: 35mm
• Dimensions: Gearbox measures 260mm high by 53mm wide, with a central hook bolt height of 45mm and a latch height of 23mm, projecting 11mm.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Maintenance and Repair:

While the faceplate can be unscrewed, the gearbox cannot be swapped due to its connection with the linkage rail. However, repair parts are available for existing gearboxes. For more details, please refer to our multipoint lock gearbox category.

Product Specification

• Manufacturer: Millenco
• Spindle Size: 8mm

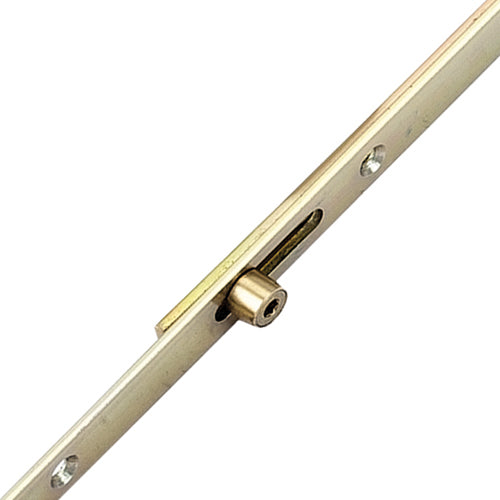

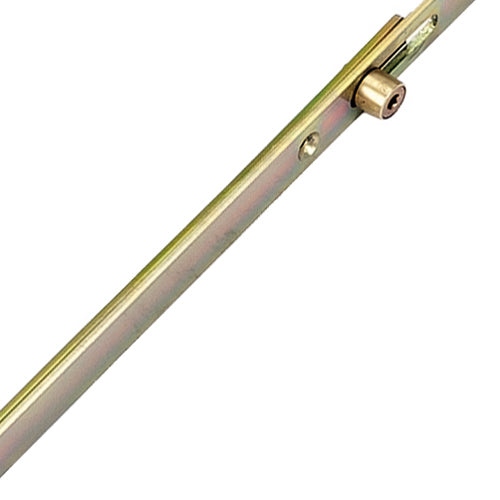

• Rollers: 4
• Latch: 1

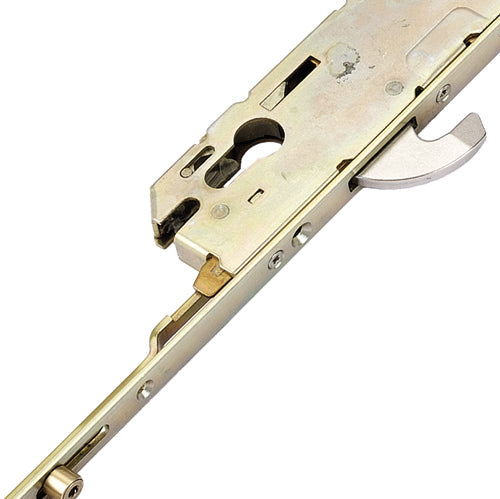

• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 460mm
• Distance Between Outer Locking: 1615mm
• Height: 2200mm
• Top Roller to Spindle: 765mm
• Bottom Roller to Spindle: 850mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

Backset Measurement:
To measure the backset, place a ruler or tape measure from the edge of the door to the center of the lock cylinder. This distance is your backset measurement.

Centres Measurement: To measure the centres, measure the distance between the two fixing points of the lock, which are typically the centers of the keyhole and the handle. Ensure you measure from the center of one to the center of the other.

Faceplate Measurement: To measure the faceplate, remove the existing lock and measure the width and height of the faceplate. This will help you select the correct size from the drop-down options.

Operation Details: The operation of the lock can vary based on the specific model. Typically, it involves lifting the handle to engage the locking mechanism and turning the key to secure or release the lock. For precise operation instructions, refer to the product manual or consult with a professional.
