1 Latch 3 Hooks 2 Deadbolts 2 Rollers Double Spindle Multipoint Door Lock

SKU:DF-MA51115A

£225.78 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Backset 35mm

Faceplate Flat 16mm - Square Ends

Operation Double Spindle

43 in stock

Free shipping on all orders over $75.00
Easy Free Return and Refund
Trusted by Trade Professional

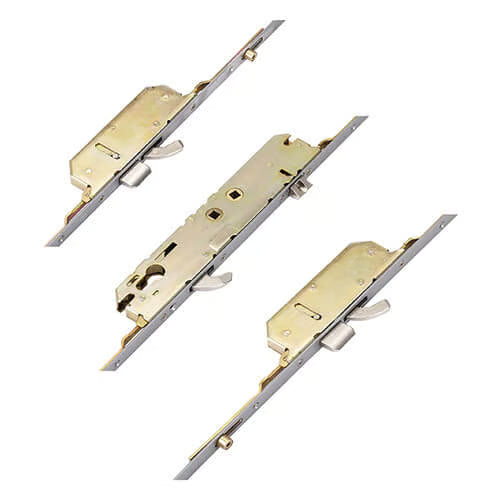

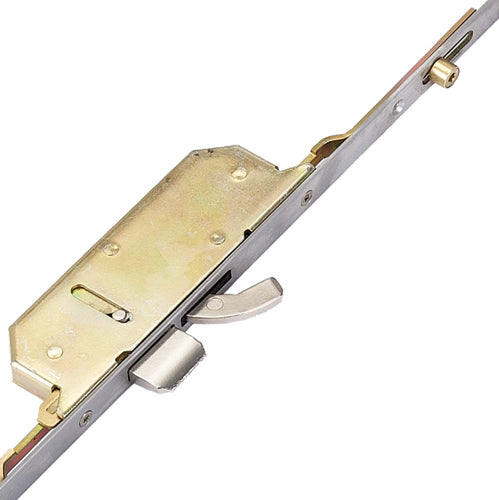

The Millenco Mantis 1 multipoint door lock is a robust and versatile locking solution for all types of door including timber, composite, UPVC and aluminum doors. Its special configuration comprises 2 Rollers, 3 Hooks, 2 Deadbolts and 1 Latch, which guarantees higher security and durability.

The Mantis 1 lock is easily identifiable by its unique gearbox with 86/117 mm centers. Older versions don't have markings on the faceplate, so check carefully to see if it is authentic.

The Mantis 1 is offered in three flavors to address different security needs:

2 deadbolts and 3 hooks
3 Hooks and 2 Deadbolts 2 Rollers
A 4 roller version

There is a passive lock version, too, but none of the historic models with different hook and deadbolt placements are manufactured anymore. In some instances this may involve repositioning the keeps and lock positions when fitting.

If you want to replace your locks, the Mantis 1 is flexible and can use cover plates that can be reused from previous installations. The linkage plate behind the cover makes swapping out the faceplate a breeze, though you may need to trim some.

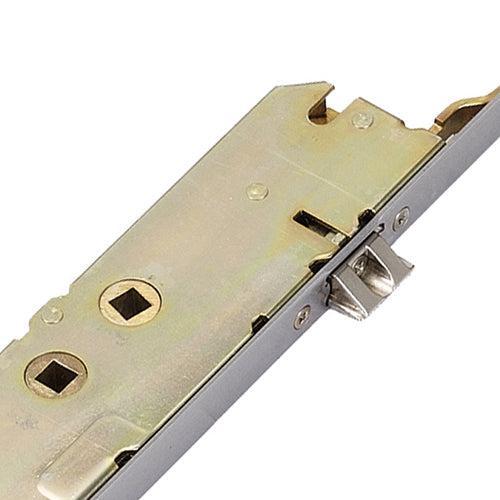

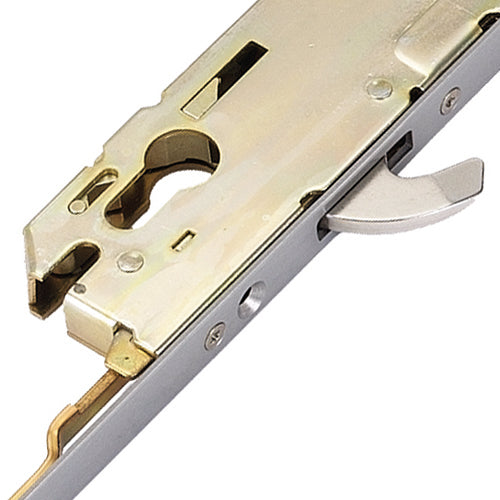

The Mantis 1 gearboxes are for double spindle applications with a standard backset of 35mm. These gearboxes are some of the largest available and are 260mm high by 53mm wide. They feature a central hook bolt and latch for optimum performance.

The faceplate can be unscrewed but it is important to note that the gearbox cannot be changed as it is linked to the linkage rail. But now there are replacement parts for those who want to keep their existing gearboxes.

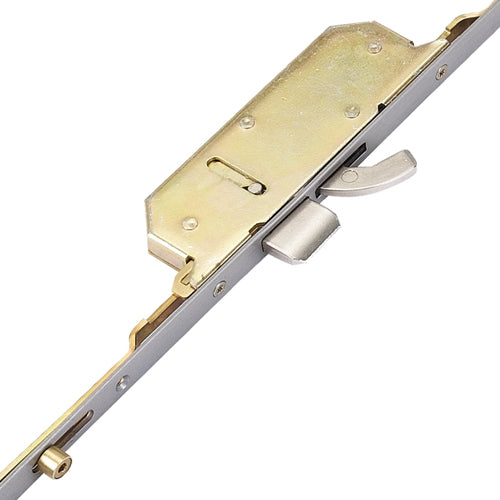

The rollers are part of the locking mechanism. They compress the door tightly to the frame and keep dust and water out. They also contribute to maintaining the structural integrity of the door, providing they are properly engaged.

To operate, just follow these steps:

Secure the door:

Close the door and the latch will engage automatically.
Lift the handle to set the lock points.
To lock the system, turn the key.

To open the door:

Turn the key and unlock the system
To disengage the locking points, push down on the handle.
A quarter turn of the key will pull the latch back.

We have a full range of associated products for the Millenco Mantis 1 including keeps, spindles, handles and accessories so you will be sure to have everything you need for a complete installation or replacement.

For latch reversal just take out the screws in the latch, turn it around and put the screws back in.

So whether you’re upgrading security or simply replacing an old lock, the Millenco Mantis 1 multipoint door lock is a reliable option that marries functionality with peace of mind.
