The Mitred Lever Handle is the definitive symbol of modernist architectural ironmongery. Defined by its sharp, 90-degree “mitred” joint where the lever meets the stem, this handle is the primary choice for designers, architects, and developers who favor the “Form Follows Function” philosophy. Often part of the Elite or Project collections, the Mitred Lever Handle balances a clean, industrial aesthetic with the high-performance durability required for contemporary commercial and residential environments.
Top Mitred Lever Finishes
In modern architectural projects, the Mitred Lever Handle is typically specified alongside a full suite of matching stainless steel hardware to ensure a unified, cohesive building aesthetic.
The Architectural Standard: Satin Stainless Steel
The 19mm Mitred Lever Handle in Satin Stainless Steel is the industry benchmark for commercial offices and high-end residential developments. The brushed finish is exceptionally effective at hiding fingerprints and resisting the oils of the skin, ensuring the hardware remains pristine even under heavy daily use.
-
Best For: Corporate headquarters, luxury apartments, and minimalist galleries.
-
Key Detail: Grade 304 construction provides total resistance to corrosion, pitting, and tarnishing.
The Comprehensive Guide to the Mitred Lever Handle
1. Design Philosophy: The Bauhaus Influence
The Mitred Lever is a product of geometric purity. Unlike “scrolled” or “arched” handles that use organic curves, the mitred handle utilizes a precise 90-degree angle. This Mitred Lever Handle echoes the Bauhaus movement, which emphasized simplicity, rationality, and the beauty of industrial materials.
-
Linear Symmetry: The straight lines of the lever mirror the vertical and horizontal planes of modern architecture. On a flush-faced door, the mitred handle acts as a sharp, functional accent that complements a minimalist interior.
-
The “T-Bar” Evolution: While traditional T-Bar handles often have a “plugged” end, a high-quality mitred handle features a seamless joint, creating the illusion of a single, continuous piece of metal bent at a perfect right angle.
2. Engineering: The Strength of Grade 304 Stainless Steel
In commercial environments, hardware is subject to “Category 3” or “Category 4” use—meaning it must withstand constant, aggressive operation. The Mitred Lever is typically manufactured from Grade 304 Stainless Steel.
-
Structural Rigidity: Grade 304 offers an exceptional strength-to-weight ratio. It is a dense, hard-wearing metal that will not bend or snap under the pressure of hundreds of daily operations.
-
Hygienic Surface: Because stainless steel is non-porous, it is an excellent choice for offices and public buildings. It can be repeatedly sanitized with harsh chemicals without the metal tarnishing or the finish flaking off.
-
Environmental Resistance: Grade 304 is naturally resistant to oxidization, making it the perfect “fit and forget” solution for interior doors in humid climates or buildings near the coast.
3. Technical Specifications: The 19mm Diameter
The 19mm diameter of the lever is the recognized architectural standard for a secure and comfortable grip.
-
Ergonomics: A 19mm tube fits the natural contour of the palm, providing enough surface area to distribute the force of opening a heavy fire door without causing discomfort to the user.
-
Visual Proportions: On a standard 44mm thick commercial door, a 19mm handle offers a balanced visual weight that looks substantial and “pro-grade” without appearing overly bulky.
4. Safety and Fire Compliance (BS EN 1634-1)
The Mitred lever is more than a decorative choice; it is a high-performance safety component.
-
Fire Integrity: The Mitred series is fully fire-rated (FD30/60). It has been tested to ensure the handle remains operational and the internal lock shielded during 30 to 60 minutes of extreme heat exposure.
-
DDA/Equality Act Considerations: While many mitred handles are straight, they are often used in conjunction with “Return-to-Door” (Berlin) versions on corridors to meet specific accessibility requirements while maintaining the same design language throughout the building.
5. Technical Specifications Comparison of Mitred Lever Handle
| Feature | Elite Mitred Lever (T-Bar) | Standard Zinc Handle |
| Material | Grade 304 Stainless Steel | Zinc Alloy (Pot Metal) |
| Design | 90-Degree Mitred Joint | Cast Curve / Scrolled |
| Diameter | 19mm (Robust) | Variable (usually 16mm) |
| Fire Rating | FD30 / FD60 | Often Not Rated |
| Fixing System | Concealed-Fix Rose | Often Exposed Screws |
6. Professional Installation: The Concealed-Fix Rose
A professional architectural finish depends on clean installation. The Mitred lever features a two-part concealed-fix rose.
-
Clean Aesthetics: The inner sub-plate is screwed directly into the door. A matching stainless steel “rose” cover is then snapped or screwed over the top, hiding all mounting screws and fixings.
-
The Bolt-Through Fit: For maximum longevity in commercial settings, always use bolt-through fixings. These pass through the door and the lock case to screw the two handles together. This “sandwich” effect ensures the handles never wobble or pull loose from the door leaf, even after decades of use.
7. Maintenance and Longevity
Because it is manufactured from high-grade stainless steel, the Mitred lever requires very little maintenance to keep its “day one” appearance:
-
Routine Cleaning: A quick wipe with a soft microfiber cloth and mild soapy water once a month will remove fingerprints and airborne dust.
-
Mechanical Care: Once a year, a tiny drop of light machine oil on the internal return spring (located behind the rose) will ensure the handle action remains silent and perfectly horizontal.
-
Avoid Abrasives: Never use bleach, steel wool, or abrasive scouring pads, as these will scratch the precision-brushed satin grain of the finish.
For architects, developers, and facility managers who require a handle that balances sharp, modern style with mechanical excellence, the 19mm Mitred Lever Handle is the definitive specification. Its linear design and Grade 304 construction make it a durable, compliant, and stylish choice for any high-traffic project.

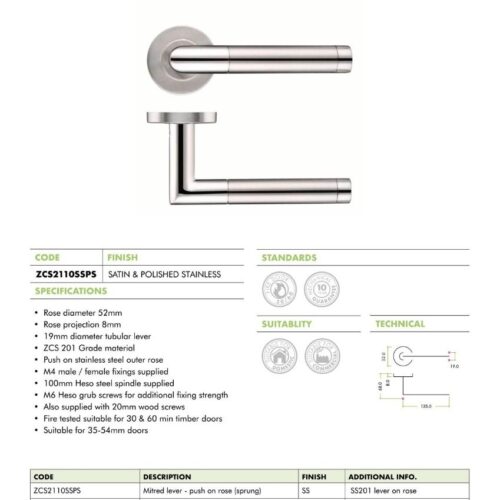

This 19mm Mitred Lever Handle with a dual finish and 52mm push on rose is manufactured from Grade 201 stainless steel, combining durability with a modern, stylish design. The dual finish blends satin and polished surfaces, creating a striking contrast that enhances the appearance of any door. Its mitred shape provides a clean, angular look, while the ergonomic design ensures comfortable handling.
Built for both residential and commercial use, this Mitred Lever Handle is designed to withstand daily wear while maintaining its contemporary appeal. The 52mm push on rose allows for quick and secure installation, giving a neat and professional finish. Strong, functional, and visually appealing, this dual finish Mitred Lever Handle offers the perfect balance of performance and design.
