Architectural Strength Barrel Bolt – 450mm x 50mm

In high-traffic commercial environments and high-security residential projects, standard hardware often falls short. The 450mm Architectural Strength Barrel Bolt is specifically designed for tall doors, stable doors, and heavy timber gates where a significant “reach” and a thicker bolt diameter are required to prevent warping or forced entry.

Forged from Grade 304 Stainless Steel (SS304), this 450mm Architectural Strength Barrel Bolt features an oversized barrel and a heavy-gauge shoot. The 450mm length is not just for aesthetics; it allows the user to operate the bolt at a comfortable height on tall doors while securing the top or bottom of the frame effectively. With its premium Satin Stainless Steel (SSS) finish, it provides a clean, modern look that resists the pitting and corrosion often seen in exterior or coastal installations.

Why the 450mm Architectural Barrel Bolt is the Professional Choice

• Extended 450mm Reach: Ideal for securing the top of high-clearance doors or the bottom of industrial gates without requiring the user to overstretch.

• Heavy-Duty Shoot Diameter: Features a thickened solid steel bolt that offers superior shear strength against kick-in attacks or heavy wind loads.

• Grade 304 Stainless Steel Build: Naturally rust-proof and highly resistant to environmental pollutants, making it suitable for both internal luxury suites and external perimeter gates.

• Architectural Cranked or Straight Options: Designed to fit flush against the door or “cranked” to bridge gaps in offset frames, ensuring a versatile fit for any joinery.

• Ergonomic Slide Action: The oversized knob provides excellent leverage, allowing for smooth operation even if the door has slight seasonal movement or alignment shifts.

• Multiple Strike Plate Options: Usually supplied with both a flat plate and a floor-mounted “bridge” socket to accommodate various frame configurations.

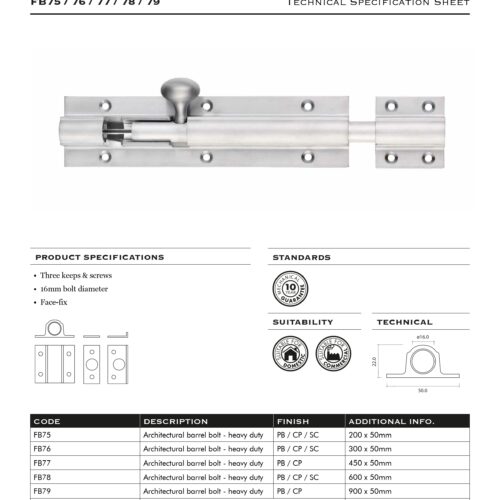

Technical Specifications of 450mm Architectural Strength Barrel Bolt

Professional Installation for Maximum Security of 450mm Architectural Strength Barrel Bolt

To ensure the 450mm Architectural Strength Barrel Bolt performs under pressure, follow these essential installation steps:

1. Vertical Alignment: Use a spirit level to ensure the bolt is perfectly vertical. On a 450mm bolt, even a 1° tilt can cause the shoot to bind as it travels through the guides, making it difficult to operate.

2. Pilot Holes for Hardwood: Since this bolt is often fitted to heavy oak or mahogany doors, always pre-drill pilot holes for the stainless steel fixing screws. This prevents the screw heads from snapping and ensures a tight, vibration-resistant fit.

3. Strike Plate Recessing: For a truly “architectural” look, recess the strike plate into the frame or floor until it sits flush. This not only looks better but prevents the plate from being pried off during a break-in attempt.

4. Account for Seasonal Swelling: When marking the “locked” position, allow 1mm to 2mm of clearance in the strike socket. Timber doors expand in winter; if the fit is too tight, you may find the bolt impossible to throw during humid months.



5. Lubrication Maintenance: Though stainless steel is low-maintenance, a quick spray of dry PTFE lubricant inside the barrel every 12 months will keep the 450mm slide action feeling effortless and “silky.”

The Ultimate Deterrent for Large-Scale Openings

The 450mm Architectural Strength Barrel Bolt is the definitive hardware solution for projects that refuse to compromise on safety or style. It provides the visual and physical reassurance of “over-engineered” security. By choosing a 450mm SS304 bolt, you are ensuring that even the largest doors remain perfectly aligned and securely locked against both the elements and intruders.

Upgrade your doors and gates with this 450mm Architectural Strength Barrel Bolt , designed for superior strength and long-lasting durability. Crafted from premium materials, this 450mm Architectural Strength Barrel Bolt ensures maximum security for both residential and commercial applications. Its robust design guarantees smooth operation while providing a firm locking mechanism, giving you peace of mind. Ideal for doors, gates, and shutters, this barrel bolt combines functionality with an elegant architectural appeal.

Installation is simple and hassle-free, making it perfect for professionals and DIY enthusiasts alike. The heavy-duty construction withstands wear and tear over time, ensuring reliable performance for years to come. Whether used for added security or to enhance your door hardware collection, this 450mm Architectural Strength Barrel Bolt  delivers exceptional quality, sturdiness, and aesthetic value.
