Tubular Latch (Knobs) Architectural 45° Travel 127mm with SSS Forend Durable Internal Door Latch Smooth Operation

In high-end architectural ironmongery, the placement of the door handle is as important as its function. The 127mm Architectural 45 Degree Tubular Latch (5-inch) is designed for doors with wide stiles or traditional paneling. By providing a generous 102mm backset, it ensures that round mortice knobs are positioned far enough away from the door frame to prevent “knuckle-clipping”—a common frustration with shorter, standard latches.

Beyond its reach, this 127mm Architectural 45 Degree Tubular Latch features a high-ratio internal cam. While standard latches often require a 60° to 90° rotation, this architectural version fully retracts the bolt with only 45° of travel. This is the essential mechanical upgrade for round knobs, which can be difficult to rotate fully with a standard grip. Housed in a heavy-duty casing with a Satin Stainless Steel (SSS) forend, it delivers a whisper-quiet, premium “click” every time the door closes.

Why the 127mm 45° Architectural Latch is the Professional Choice

• Extended 102mm Backset: The 127mm (5-inch) case length places the knob deep into the door face, offering a traditional aesthetic and ample hand clearance.

• Short-Travel 45° Operation: Specifically engineered to make door knobs easier to operate, requiring minimal wrist rotation to retract the bolt.

• Heavy-Duty Springing: Features a high-tensile internal spring designed to support the weight of solid brass, glass, or heavy steel knobs, ensuring they return to center every time.

• Grade 304 Stainless Steel Forend: The visible faceplate is finished in SSS, providing a contemporary, scratch-resistant surface that complements modern and traditional hardware alike.

• Bolt Friction Reduction: The latch bolt is precision-profiled and polished to glide silently over the strike plate, reducing mechanical noise and wear on the door frame.

• Pierced for Bolt-Through Fixings: The latch case includes holes to accommodate “male-to-female” bolt-through fixings, essential for securing modern door furniture permanently.

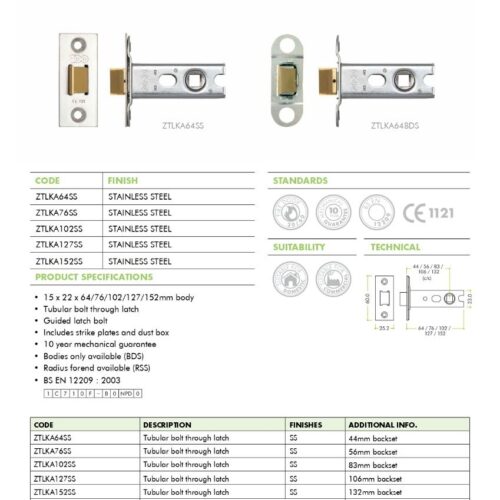

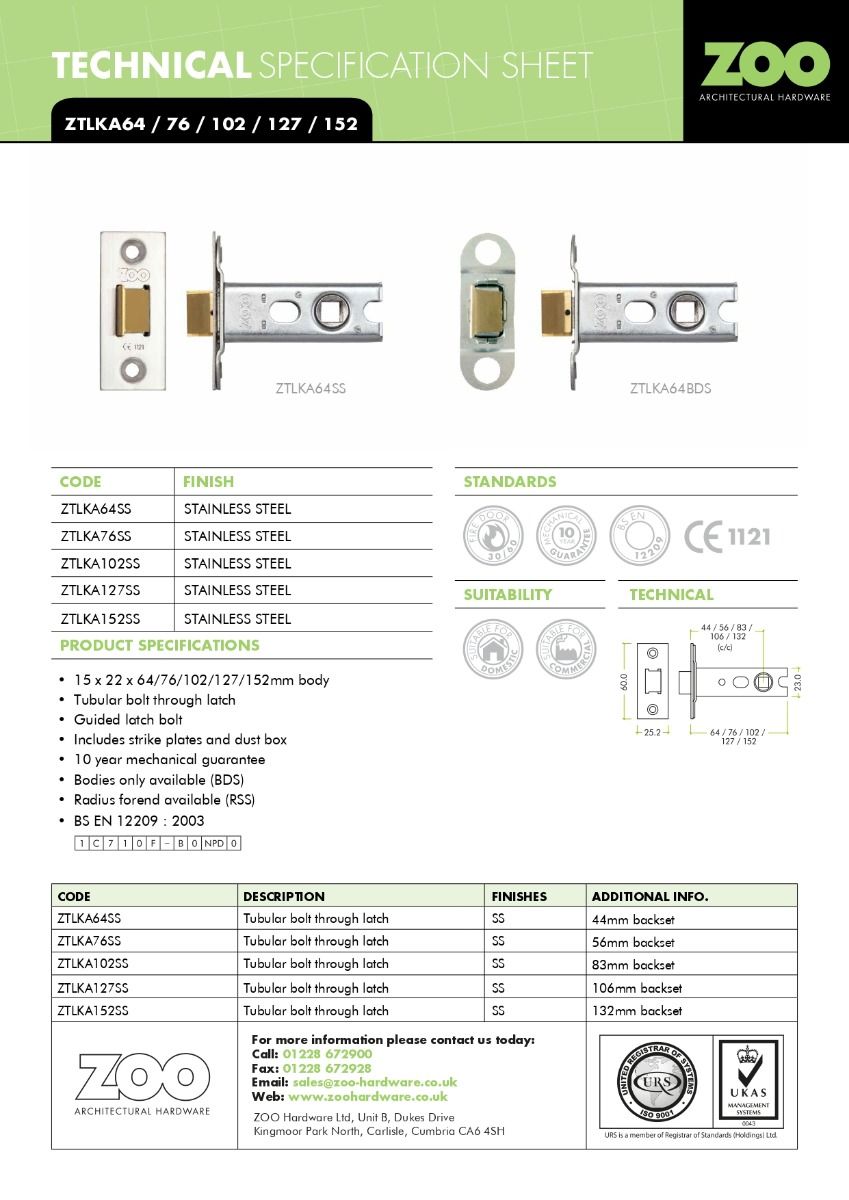

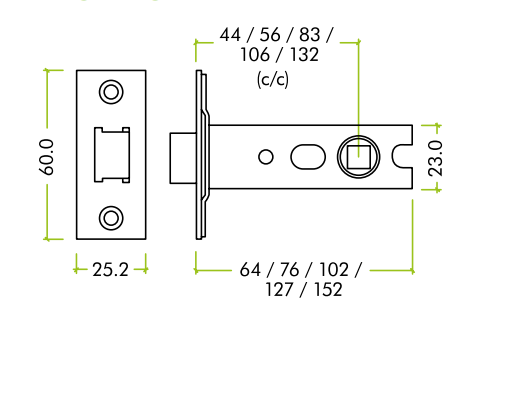

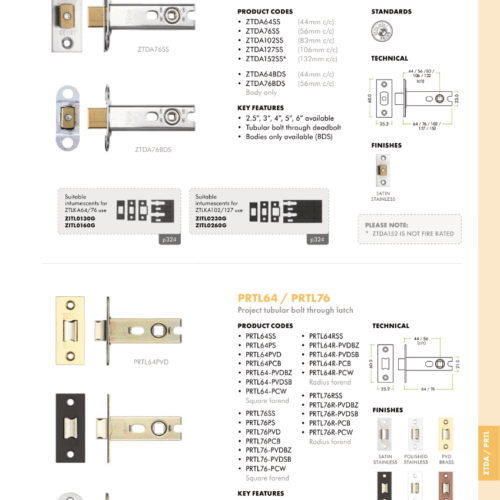

Technical Specifications of 127mm Architectural 45 Degree Tubular Latch

Professional Installation and Maintenance Tips

To maximize the “smooth operation” of your 127mm Architectural 45 Degree Tubular Latch, follow these professional installation steps:

1. Deep Mortice Preparation: When boring the 25mm hole for a 127mm latch, ensure your drill bit is long enough to reach the full depth without wandering. A diverted hole will cause the spindle to bind.

2. Verify Backset Alignment: Always double-check your 102mm center-point before drilling the spindle hole. Even a 2mm error over a 5-inch reach can cause the handle to sit crookedly on the door face.

3. Use Bolt-Through Fixings: High-quality mortice knobs often rely on bolt-through fixings for stability. Ensure your handle screws pass through the designated holes in the latch case for a “rock-solid” fit.

4. Strike Plate Depth: Ensure the cavity behind the strike plate is deep enough for the bolt to fully extend. If the bolt hits the wood, the handle may not return to its original resting position.

5. Dry Lubrication: Every 12 months, apply a small amount of dry PTFE spray or graphite powder to the latch bolt. This maintains the premium, low-friction feel of the architectural mechanism and prevents sticking.

The Ultimate Upgrade for Premium Doors

The 127mm Architectural 45 Degree Tubular Latch is the “hidden” detail that separates a standard door from a master-crafted one. It transforms a basic mechanical function into a tactile, high-end experience while solving the ergonomic challenges of traditional door knobs. By choosing this heavy-duty, short-travel latch, you are ensuring your architectural hardware performs with the same elegance and precision as your interior design.

This 127mm Architectural 45 Degree Tubular Latch for knobs, featuring a 45° travel and 127mm backset, is engineered for smooth, reliable, and precise door operation. Complete with a satin stainless steel (SSS) forend, 127mm Architectural 45 Degree Tubular Latch delivers a sleek, professional finish suitable for both residential and commercial doors. The extended 127mm backset provides greater compatibility with larger doors or specific design requirements, ensuring ergonomic and efficient handle operation while maintaining long-lasting durability.

Crafted from high-quality, robust materials, this 127mm Architectural 45 Degree Tubular Latch is designed for frequent use, offering dependable performance and enhanced longevity. The 45° travel mechanism ensures effortless operation while reducing wear on door knobs, contributing to a smoother user experience. Easy to install with all fixings included, it provides a practical and stylish solution for builders, architects, and homeowners seeking a durable, reliable, and aesthetically pleasing internal door latch.
